Introduction

NicheNet is a computational method for modeling intercellular communication by linking extracellular ligands to intracellular gene regulatory changes. This vignette provides a comprehensive overview of the NicheNet algorithm, its underlying principles, and how it differs from conventional cell-cell communication inference approaches.

The Challenge of Cell-Cell Communication Analysis

Traditional approaches to study cell-cell communication (CCC) focus primarily on identifying ligand-receptor interactions based on gene expression:

1. Expression-based methods: Identify co-expressed ligand-receptor pairs between cell types
2. Database-driven methods: Match expressed genes to curated ligand-receptor databases
3. Statistical methods: Score interactions based on expression levels and specificity

Limitation: These methods cannot predict the downstream functional effects of ligand-receptor signaling.

NicheNet’s Innovation

NicheNet addresses this limitation by:

1. Integrating prior knowledge of signaling pathways and gene regulation
2. Predicting target genes affected by each ligand
3. Ranking ligands by their ability to explain observed transcriptional changes

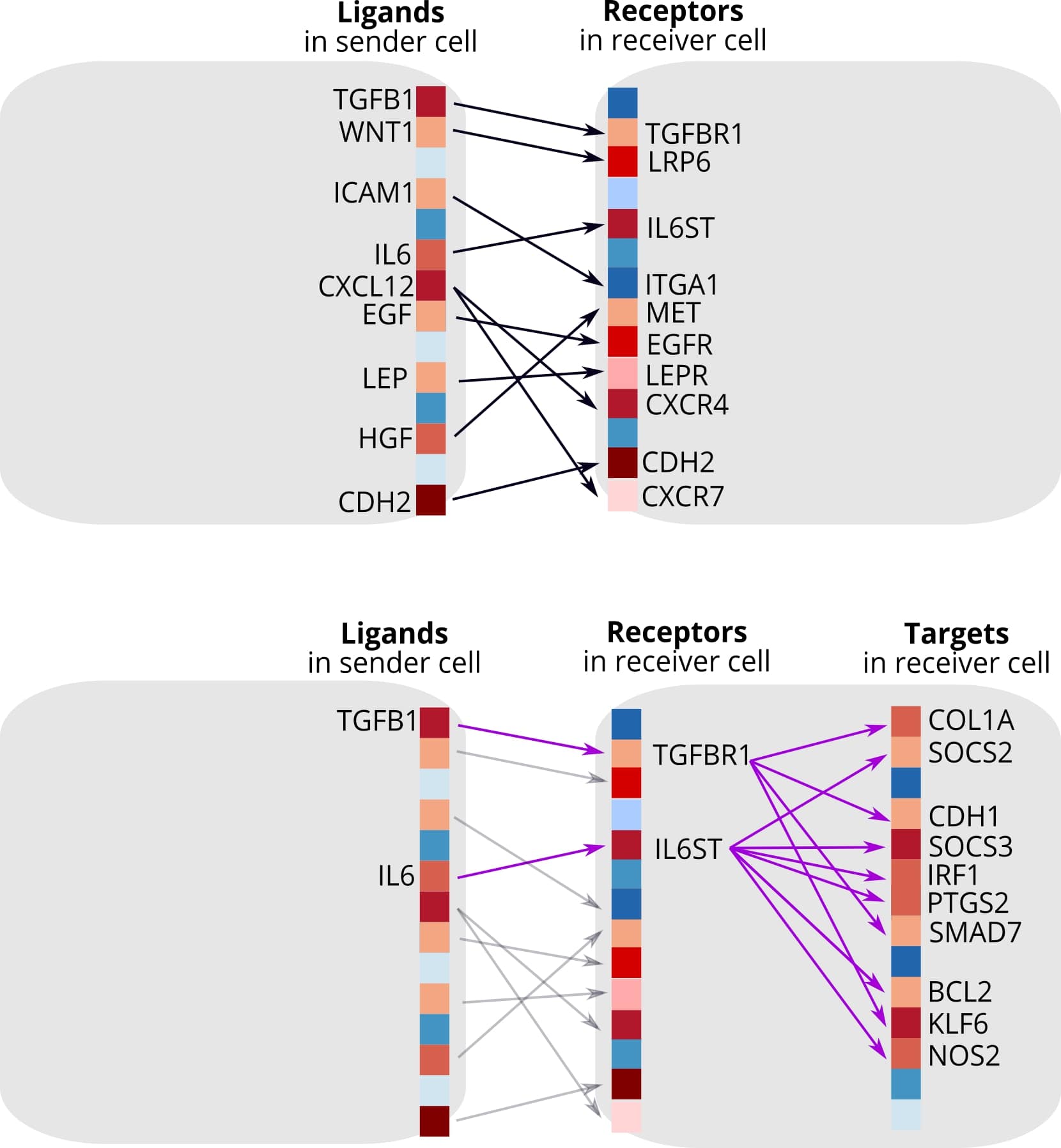

Conceptual comparison of NicheNet with traditional approaches

Algorithm Architecture

Three-Layer Prior Model

NicheNet’s prior knowledge model integrates three biological layers:

Layer 1: Ligand-Receptor Interactions

Curated from multiple databases including:

• OmniPath - Comprehensive signaling database
• KEGG - Pathway-based interactions
• Reactome - Reaction-based annotations
• Guide to PHARMACOLOGY - Drug-target data

Layer 2: Signaling Networks

Intracellular signal transduction pathways connecting receptors to transcription factors (TFs):

• Kinase-substrate relationships
• Protein-protein interactions in signaling cascades
• Second messenger systems

Layer 3: Gene Regulatory Networks

Transcription factor-target gene relationships:

• ChIP-seq derived TF binding sites
• Regulatory network inference results
• Promoter motif predictions

NicheNet prior model architecture

Network Integration Algorithm

Weighted Network Aggregation

Each data source $s$ is assigned a weight $w_s \in [0, 1]$:

$$W_{ij} = \sum_{s \in S} w_s \cdot \mathbf{1}_{(i,j) \in E_s}$$

where: - $W_{ij}$ is the aggregated weight between nodes $i$ and $j$ - $S$ is the set of all data sources - $E_s$ is the edge set from source $s$

Hub Correction

To prevent hub nodes from dominating predictions:

$$W_{ij}^{corrected} = W_{ij} \cdot d_j^{-h}$$

where: - $d_j$ is the in-degree of node $j$ - $h \in [0, 1]$ is the hub correction factor

Ligand-Target Score Computation

Personalized PageRank (PPR)

NicheNet uses Personalized PageRank to compute ligand-target regulatory potential scores.

Algorithm Description

For a ligand $L$, the PPR vector $\pi_L$ is computed iteratively:

$$\pi_L^{(t+1)} = (1-\alpha) \cdot \mathbf{e}_L + \alpha \cdot W^T \cdot \pi_L^{(t)}$$

where: - $\alpha$ is the damping factor (default: 0.5) - $\mathbf{e}_L$ is the restart vector (1 for ligand, 0 elsewhere) - $W$ is the normalized adjacency matrix

Interpretation

• High $\pi_L(g)$: Gene $g$ is strongly connected to ligand $L$ through the signaling network
• Damping factor: Controls the balance between local (receptor-proximal) and global (downstream) effects

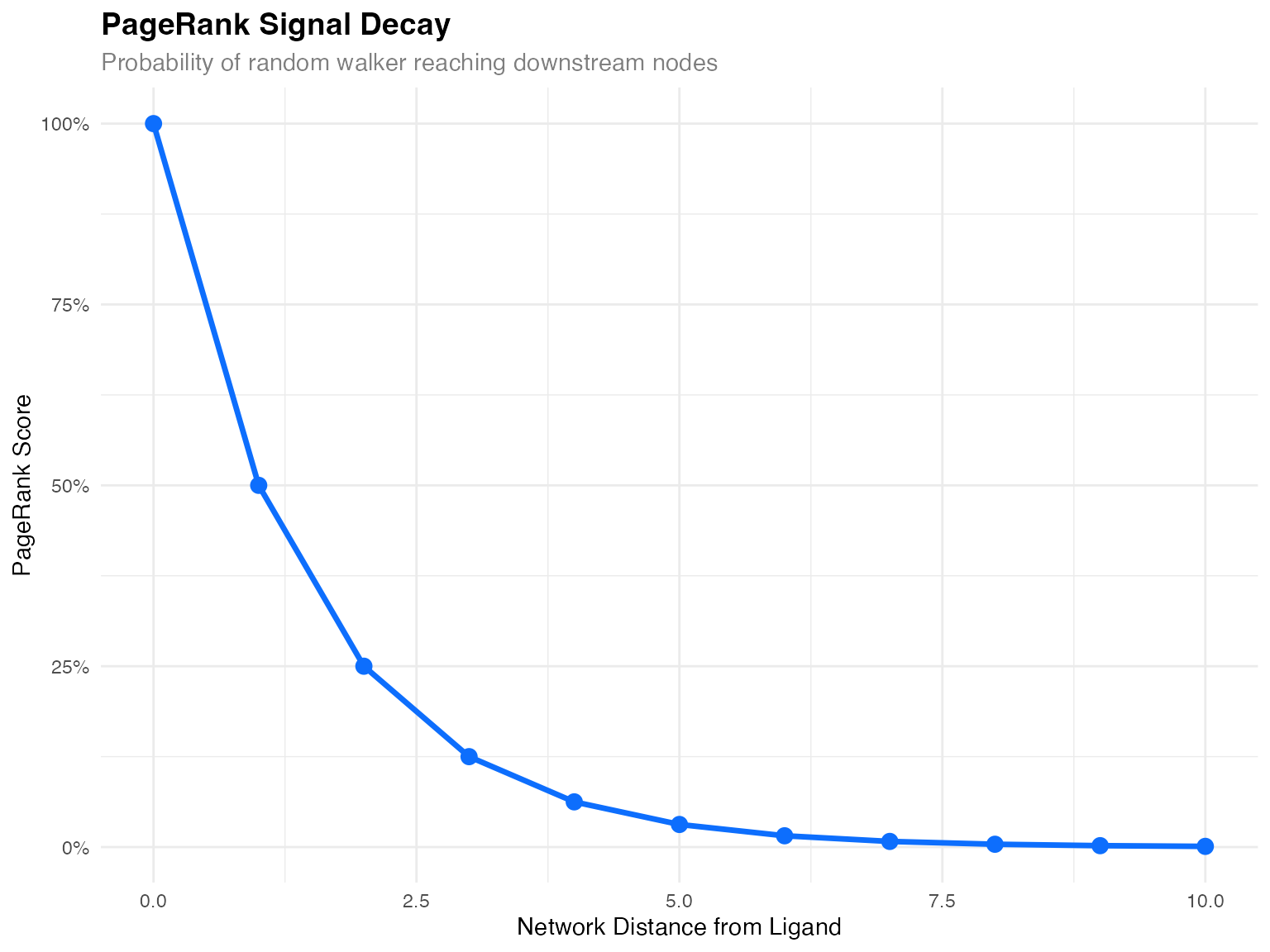

Personalized PageRank propagation from ligand to targets

Alternative Methods

Shortest Path Length (SPL)

For comparison, NicheNet also supports SPL-based scoring:

$$S_{L \to g} = \frac{1}{d(L, g)}$$

where $d(L, g)$ is the weighted shortest path distance.

Trade-off: SPL captures direct signaling paths but may miss parallel signaling routes.

Ligand Activity Prediction

Problem Formulation

Given: - Gene set of interest $G$: Differentially expressed genes in receiver cells - Background genes $B$: All expressed genes - Ligand-target matrix $M$: Pre-computed regulatory potential scores

Goal: Rank ligands by their ability to predict $G$ from $B$.

Evaluation Metrics

Area Under ROC Curve (AUROC)

Measures discrimination ability:

$$AUROC = P(M_{L,g^+} > M_{L,g^-})$$

where $g^+ \in G$ and $g^- \in B \setminus G$.

Area Under Precision-Recall Curve (AUPR)

More sensitive for imbalanced data:

$$AUPR = \sum_{k} (R_k - R_{k-1}) \cdot P_k$$

Pearson Correlation

Linear relationship between scores and target membership:

$$r = \frac{\sum_g (M_{Lg} - \bar{M}_L)(y_g - \bar{y})}{\sqrt{\sum_g (M_{Lg} - \bar{M}_L)^2 \sum_g (y_g - \bar{y})^2}}$$

where $y_g = 1$ if $g \in G$, else $y_g = 0$.

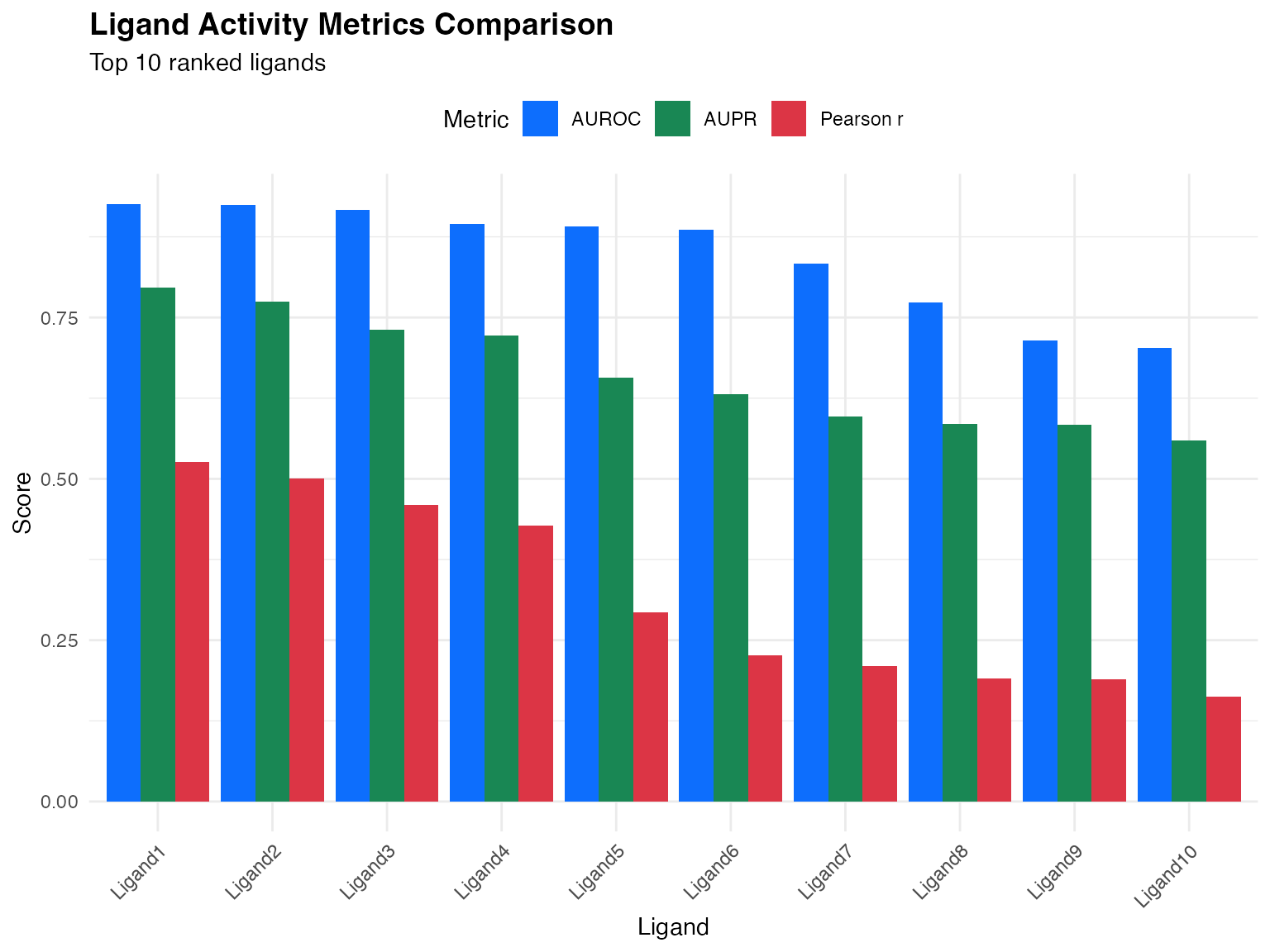

Comparison of evaluation metrics for ligand ranking

Workflow Summary

The workflow diagram illustrates the complete NicheNet analysis pipeline from input data to final predictions.

Step-by-Step Process

1. Define sender and receiver cells from expression data
2. Identify expressed ligands in sender cells
3. Identify expressed receptors in receiver cells
4. Define gene set of interest (e.g., DE genes in receivers)
5. Compute ligand activities using prior model
6. Rank ligands by predictive performance
7. Infer target genes for top ligands
8. Visualize ligand-target relationships

Performance Characteristics

Computational Complexity

Operation	Time Complexity	Memory
PPR computation	$O(n \cdot m)$	$O(n)$
Activity scoring	$O(L \cdot G \log G)$	$O(L \cdot G)$
Full analysis	~1-5 minutes	~2-4 GB

Where: - $n$ = number of genes in network - $m$ = number of edges - $L$ = number of ligands - $G$ = number of genes in background

C++ Acceleration

NicheNet includes optimized C++ implementations for:

• ROC/PR curve computation
• Batch Pearson correlation
• Matrix subsetting operations

These provide significant speedups for large-scale analyses.

Best Practices

Choosing Parameters

Parameter	Recommended	Range	Notes
Damping factor	0.5	0.1-0.9	Higher = more local effects
Hub correction	0.5	0-1	Higher = stronger hub penalty
LTF cutoff	0.99	0.9-0.999	Sparsity of ligand-TF links

Interpreting Results

• High AUROC + High Pearson: Strong, reliable ligand candidate
• High AUROC + Low Pearson: May indicate non-linear effects
• Low AUROC + High Pearson: Check for data quality issues

References

1. Browaeys R, Saelens W, Saeys Y. NicheNet: modeling intercellular communication by linking ligands to target genes. Nature Methods 17, 159–162 (2020).

2. Page L, Brin S, Motwani R, Winograd T. The PageRank citation ranking: Bringing order to the web. Stanford InfoLab (1999).

3. Türei D, Korcsmáros T, Saez-Rodriguez J. OmniPath: guidelines and gateway for literature-curated signaling pathway resources. Nature Methods 13, 966–967 (2016).
