LIANA Quick Start Guide
Zaoqu Liu
Fork Maintainerliuzaoqu@163.com
2026-01-23
Source:vignettes/quickstart.Rmd
quickstart.RmdInstallation
From R-universe (Recommended)
install.packages("liana", repos = "https://zaoqu-liu.r-universe.dev")From GitHub
if (!requireNamespace("remotes", quietly = TRUE))
install.packages("remotes")
remotes::install_github("Zaoqu-Liu/liana")Quick Start in 5 Minutes
Load Example Data
# LIANA includes test data
liana_path <- system.file(package = "liana")
testdata <- readRDS(file.path(liana_path, "testdata", "input", "testdata.rds"))
# Check the data structure
print(testdata)
#> An object of class Seurat
#> 13714 features across 90 samples within 1 assay
#> Active assay: RNA (13714 features, 2000 variable features)Run LIANA (One Line!)
# Run multiple methods with consensus resource
liana_res <- liana_wrap(
testdata,
method = c("natmi", "connectome", "logfc", "sca"),
resource = "Consensus"
)Aggregate Results
# Combine results from all methods
liana_aggr <- liana_aggregate(liana_res)
# View top interactions
head(liana_aggr, 10)
#> # A tibble: 10 x 14
#> source target ligand.complex receptor.complex aggregate_rank mean_rank
#> <chr> <chr> <chr> <chr> <dbl> <dbl>
#> 1 B CD8 T HLA-DQA1 LAG3 0.000000322 28.8
#> 2 B CD8 T HLA-DQB1 LAG3 0.0000137 39.5
#> 3 B CD8 T HLA-DRA LAG3 0.0000137 15.2
#> 4 B CD8 T HLA-DQA2 LAG3 0.0000205 52
#> 5 NK NK SPON2 ITGB2 0.0000257 17
#> 6 B CD8 T HLA-DRB5 LAG3 0.0000291 39.5
#> 7 B CD8 T HLA-DRB1 LAG3 0.0000399 26.5
#> 8 B CD8 T HLA-DPA1 LAG3 0.0000530 25
#> 9 B CD8 T HLA-DPB1 LAG3 0.0000688 23
#> 10 NK B B2M CD1C 0.000260 42.8
#> # i 8 more variables: natmi.edge_specificity <dbl>, natmi.rank <dbl>,
#> # connectome.weight_sc <dbl>, connectome.rank <dbl>, logfc.logfc_comb <dbl>,
#> # logfc.rank <dbl>, sca.LRscore <dbl>, sca.rank <dbl>Visualize Results

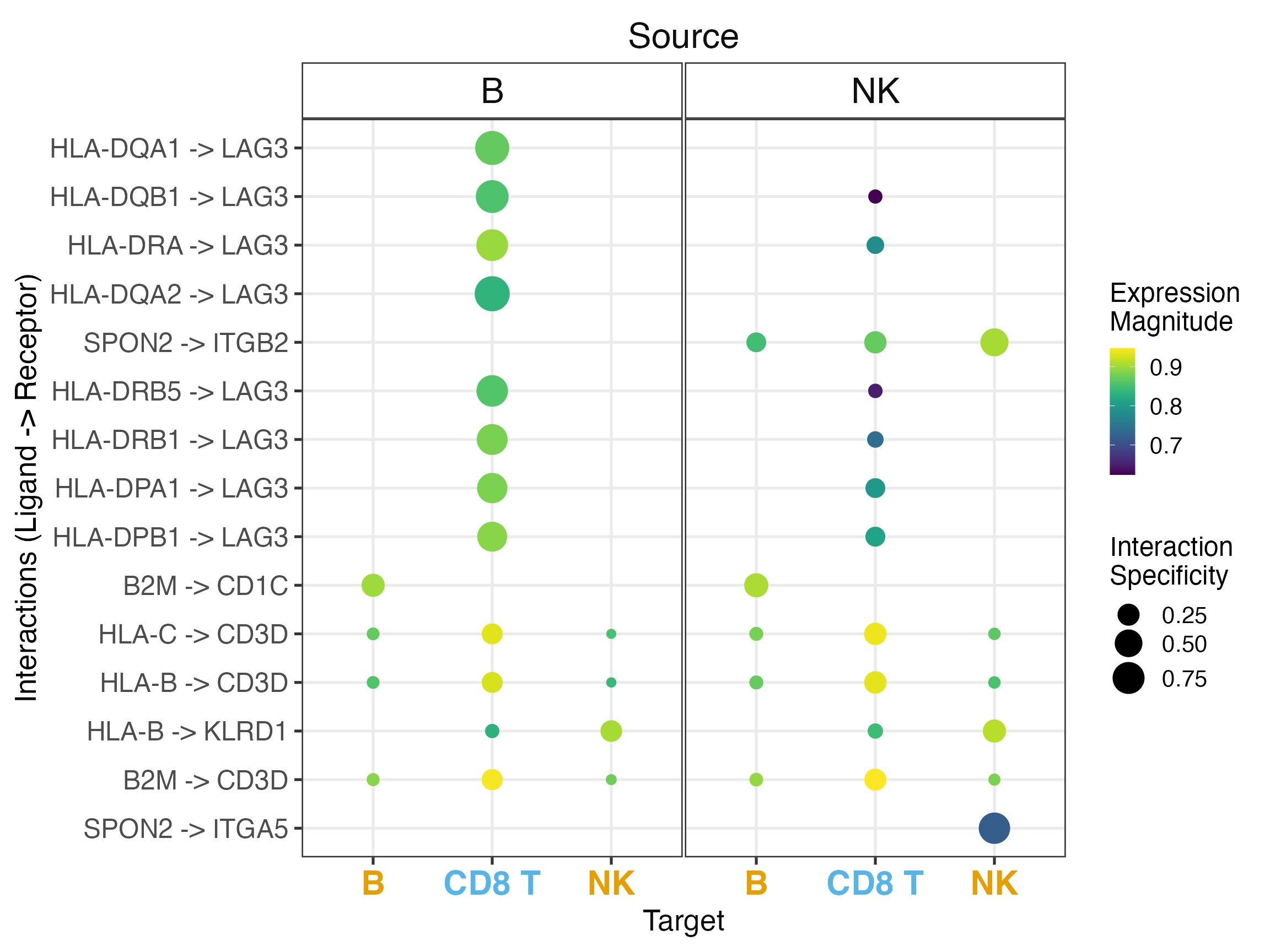

# Dotplot of top interactions
liana_aggr %>%
liana_dotplot(
source_groups = c("B", "NK"),
target_groups = c("CD8 T", "NK", "B"),
ntop = 15
)
Key Concepts
Input Data Requirements
LIANA accepts: - Seurat objects (v4) - SingleCellExperiment objects
Requirements: - Normalized expression data (log-transformed) - Cell type annotations (cluster labels)
Available Methods
show_methods()
#> [1] "connectome" "logfc" "natmi" "sca"
#> [5] "cellphonedb" "cytotalk" "call_squidpy" "call_cellchat"
#> [9] "call_connectome" "call_sca" "call_italk" "call_natmi"Available Resources
show_resources()
#> [1] "Default" "Consensus" "Baccin2019" "CellCall"
#> [5] "CellChatDB" "Cellinker" "CellPhoneDB" "CellTalkDB"
#> [9] "connectomeDB2020" "EMBRACE" "Guide2Pharma" "HPMR"
#> [13] "ICELLNET" "iTALK" "Kirouac2010" "LRdb"
#> [17] "Ramilowski2015" "OmniPath" "MouseConsensus"Common Workflows
Workflow 1: Basic Analysis
# 1. Run LIANA
liana_res <- liana_wrap(your_data)
# 2. Aggregate
liana_aggr <- liana_aggregate(liana_res)
# 3. Filter significant interactions
significant <- liana_aggr %>%
filter(aggregate_rank <= 0.01)
# 4. Visualize
liana_dotplot(significant, ntop = 20)Workflow 2: Single Method
# Run only CellPhoneDB with custom parameters
cpdb_res <- liana_wrap(
your_data,
method = "cellphonedb",
resource = "CellPhoneDB",
permutation.params = list(nperms = 1000)
)Workflow 3: Custom Resource
# Use a specific resource
liana_res <- liana_wrap(
your_data,
method = c("natmi", "sca"),
resource = "CellChatDB"
)Visualization Gallery

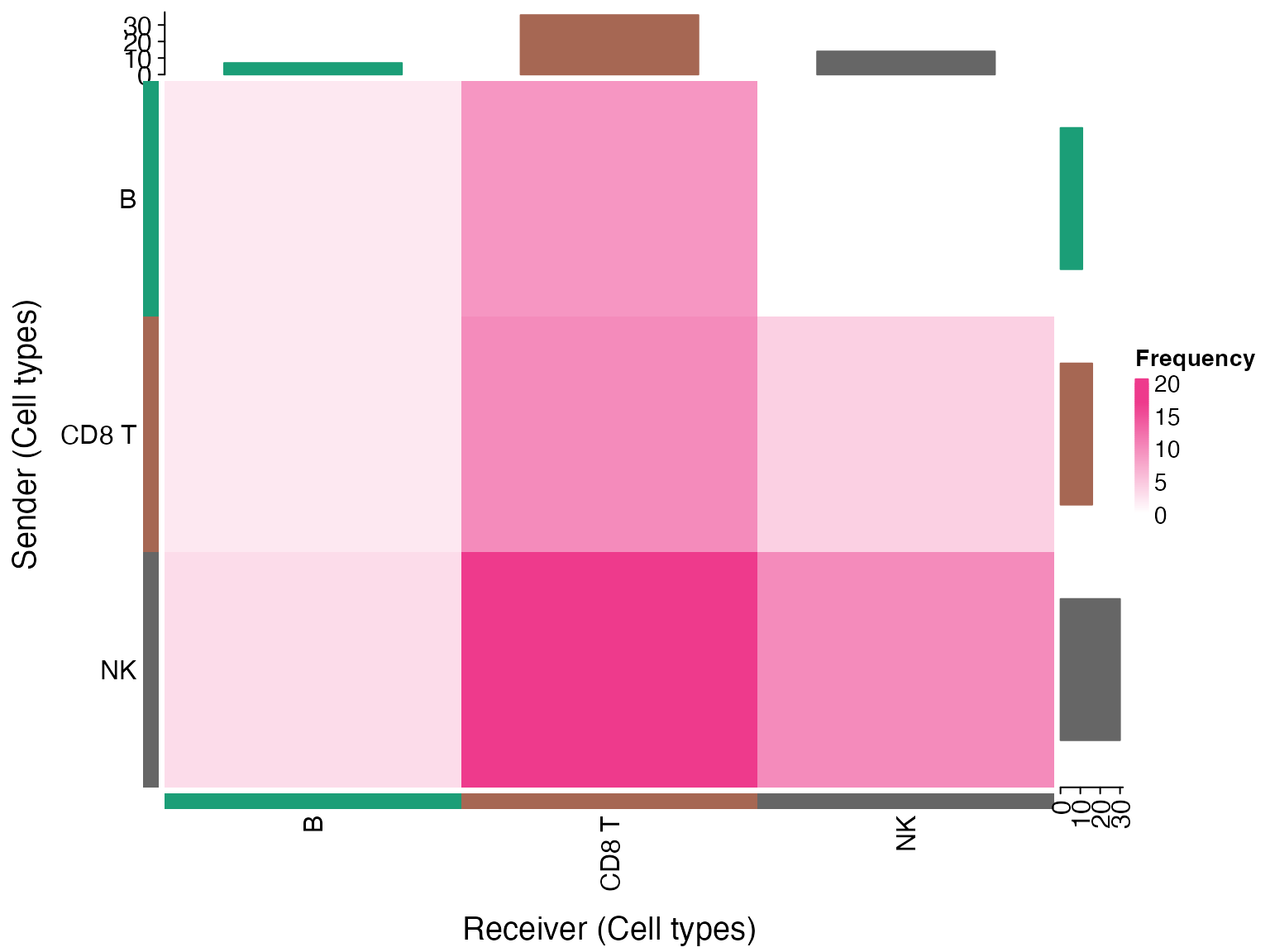

Heatmap of Communication Frequencies
# Filter to significant interactions
liana_trunc <- liana_aggr %>%
filter(aggregate_rank <= 0.01)
# Frequency heatmap
if(nrow(liana_trunc) > 0) {
heat_freq(liana_trunc)
}
Chord Diagram
# Chord diagram (requires circlize)
if(requireNamespace("circlize", quietly = TRUE) && nrow(liana_trunc) > 0) {
chord_freq(liana_trunc,
source_groups = c("CD8 T", "NK", "B"),
target_groups = c("CD8 T", "NK", "B")
)
}
Tips and Best Practices
1. Data Quality
- Ensure proper normalization (log1p transformation)
- Remove low-quality cells before analysis
- Use consistent cell type annotations
2. Parameter Tuning
# Adjust expression proportion threshold
liana_res <- liana_wrap(
your_data,
expr_prop = 0.1 # Default: 10% of cells must express the gene
)Next Steps
- Algorithm Principles: Mathematical details of each method
- Visualization Guide: Advanced plotting options
- Multi-sample Analysis: Tensor decomposition for multiple conditions
