Quick Start Guide

Introduction

scFOCAL (Single-Cell Framework for Omics-Connectivity and Analysis via L1000) is a computational framework designed to bridge single-cell transcriptomics with pharmacological knowledge. By integrating drug-response transcriptional consensus signatures (TCS) from the LINCS L1000 database with single-cell RNA sequencing data, scFOCAL enables:

Identification of drug-sensitive and drug-resistant cell populations
Discovery of combination therapy candidates
Analysis of tumor heterogeneity in drug response

This vignette provides a quick introduction to get you started with scFOCAL.

Installation

From R-Universe (Recommended)

install.packages("scFOCAL", repos = "https://zaoqu-liu.r-universe.dev")

From GitHub

# Install devtools if needed
if (!requireNamespace("devtools", quietly = TRUE))
    install.packages("devtools")

devtools::install_github("Zaoqu-Liu/scFOCAL")

Dependencies

scFOCAL requires several Bioconductor packages:

if (!requireNamespace("BiocManager", quietly = TRUE))
    install.packages("BiocManager")

BiocManager::install(c("MAST", "edgeR", "ComplexHeatmap", "EnhancedVolcano"))

Note: Seurat is required but listed as a suggested package:

# For Seurat v4 (recommended)
remotes::install_version("Seurat", version = "4.4.0")

# Or for Seurat v5
install.packages("Seurat")

Launching scFOCAL

Once installed, launching the interactive Shiny application is straightforward:

library(scFOCAL)

# Launch the GUI
runscFOCAL()

This will open the scFOCAL interface in your default web browser.

Workflow Overview

The scFOCAL workflow consists of five main steps:

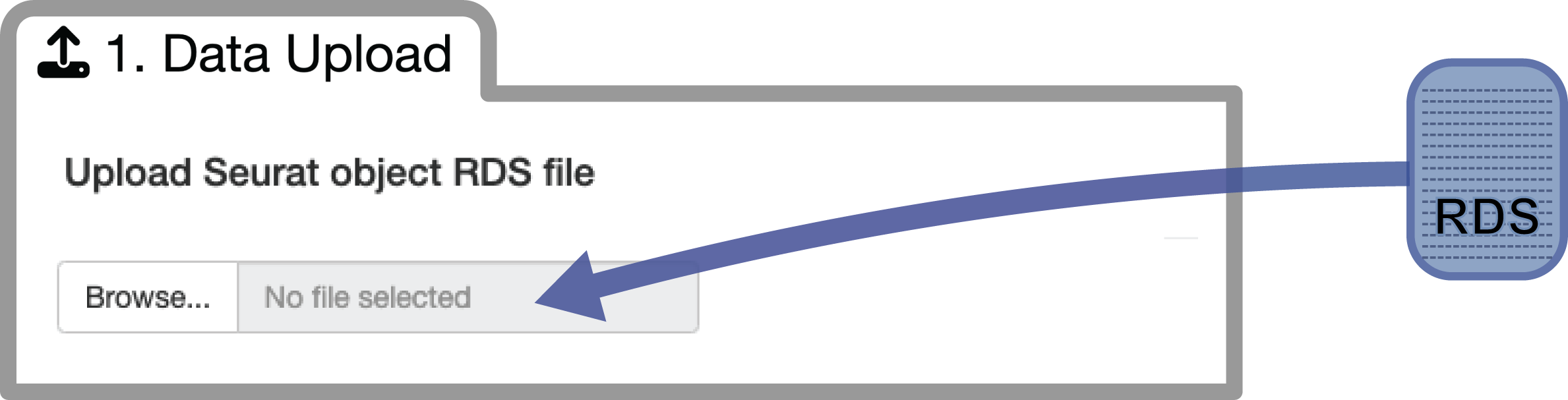

Step 1: Data Upload

Upload your preprocessed Seurat object (.rds format) containing:

Normalized expression data
Cell type annotations in metadata
Dimensional reduction (UMAP/tSNE)

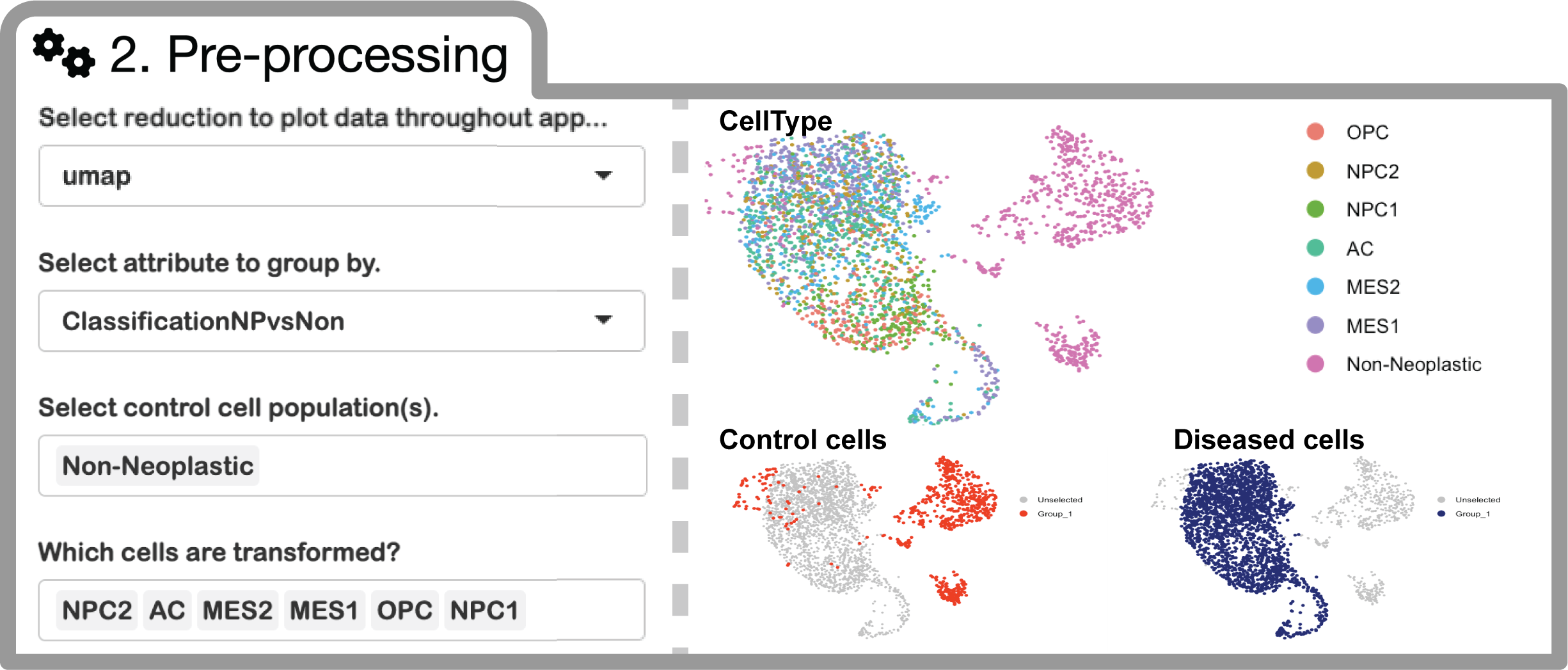

Step 2: Pre-processing

Define your analysis groups:

Control populations: Non-malignant cells (e.g., immune cells, stromal cells)
Test populations: Tumor cells of interest

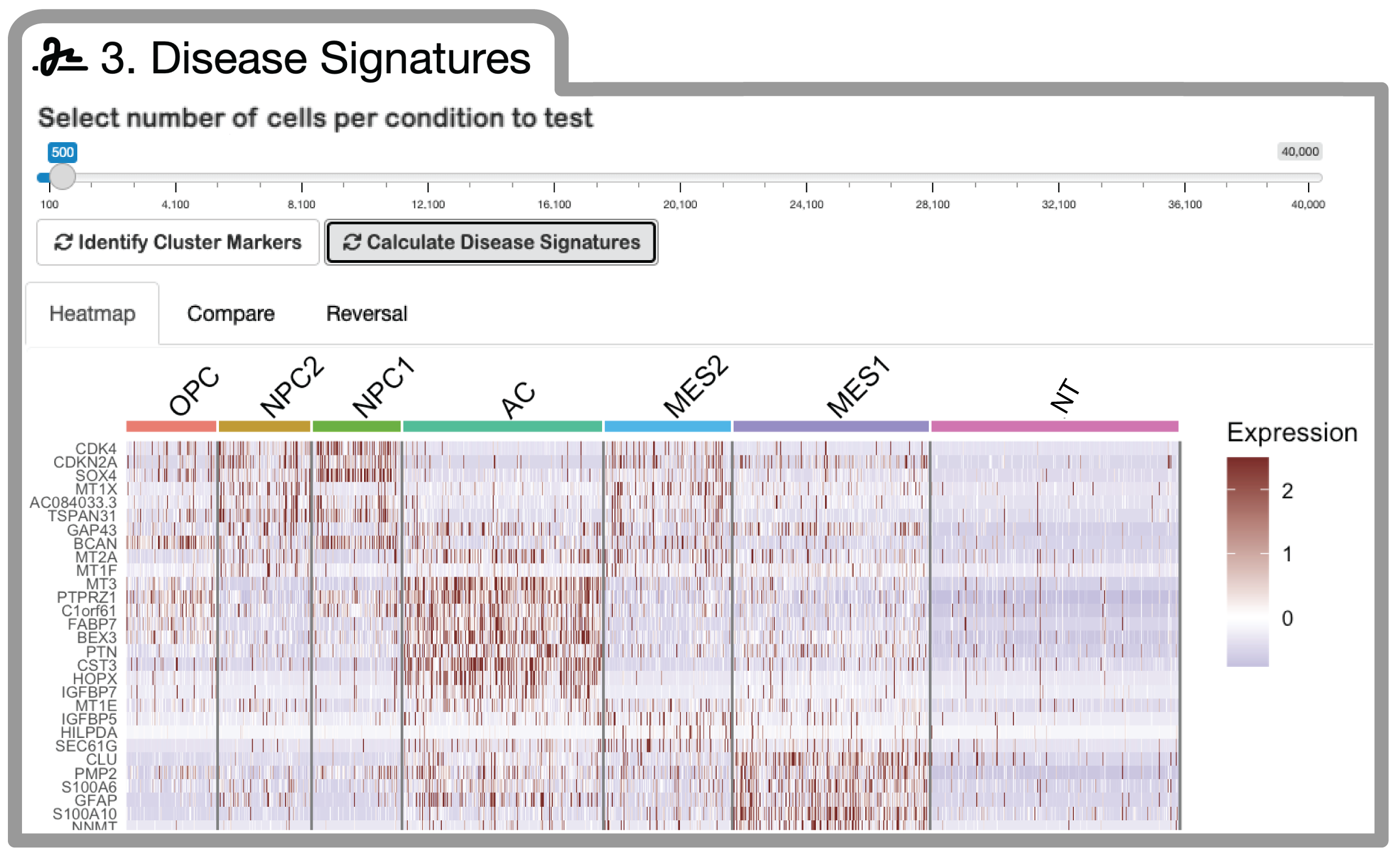

Step 3: Disease Signature Generation

Compute cell-type-specific differential expression signatures using the MAST statistical framework:

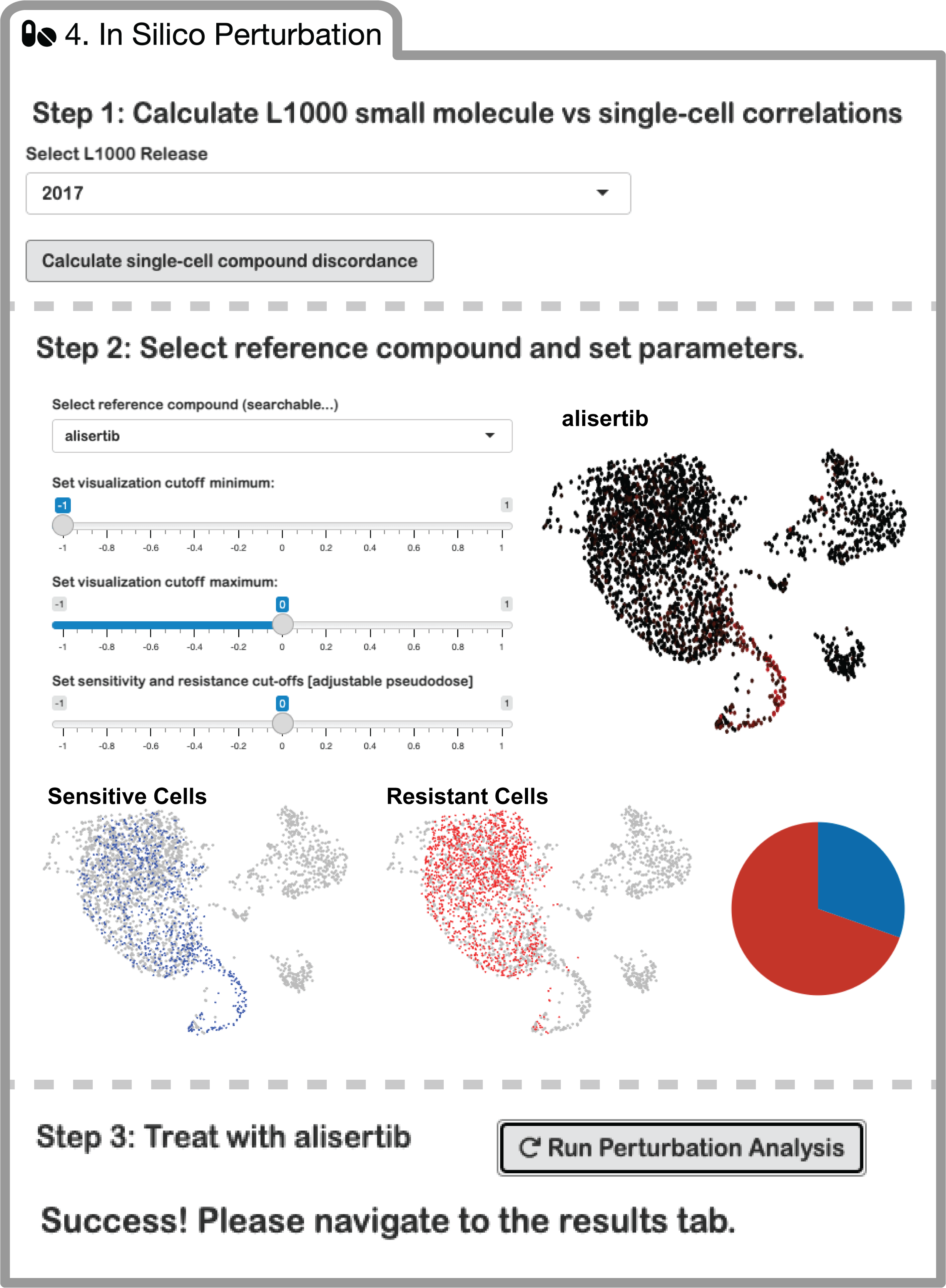

Step 4: Drug-Cell Connectivity Analysis

Calculate Spearman correlations between single-cell expression profiles and L1000 drug signatures:

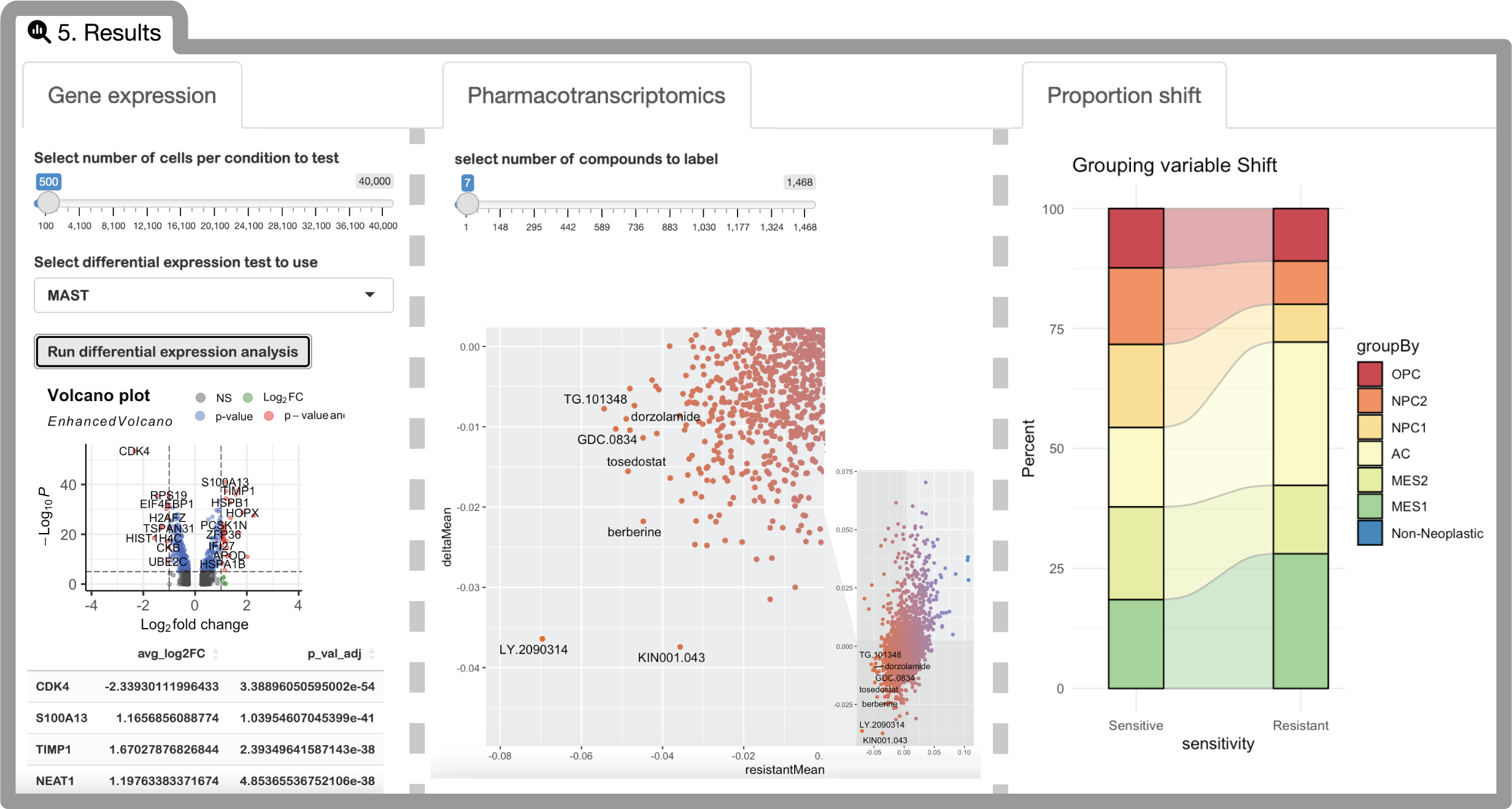

Step 5: Results Analysis

Explore differential connectivity and identify combination therapy candidates:

Built-in Data

scFOCAL includes pre-processed LINCS L1000 data:

library(scFOCAL)

# View available compounds
head(L1000_compounds)

# View L1000 gene list
head(L1000_genes)

# LINCS Response Signatures (1679 compounds × 978 genes)
dim(LINCS.ResponseSigs)

Example Dataset

Download our example dataset to test scFOCAL:

Subsampled Seurat Object (500 cells)
Pre-calculated Connectivity Matrix

Next Steps

For more detailed information, see:

Algorithm Principles - Mathematical foundations
Statistical Framework - Statistical methods
Case Study: GBM Analysis - Complete analysis example
Visualization Gallery - Output visualizations

Citation

If you use scFOCAL in your research, please cite:

Suter RK, Jermakowicz AM, Veeramachaneni R, et al. Drug and single-cell gene expression integration identifies sensitive and resistant glioblastoma cell populations. Nature Communications 17, 99 (2026). https://doi.org/10.1038/s41467-025-67783-5

Session Info

sessionInfo()

## R version 4.4.0 (2024-04-24)
## Platform: aarch64-apple-darwin20
## Running under: macOS 15.6.1
##
## Matrix products: default
## BLAS:   /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libBLAS.dylib
## LAPACK: /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRlapack.dylib;  LAPACK version 3.12.0
##
## locale:
## [1] C
##
## time zone: Asia/Shanghai
## tzcode source: internal
##
## attached base packages:
## [1] stats     graphics  grDevices utils     datasets  methods   base
##
## loaded via a namespace (and not attached):
##  [1] digest_0.6.39     desc_1.4.3        R6_2.6.1          fastmap_1.2.0
##  [5] xfun_0.56         cachem_1.1.0      knitr_1.51        htmltools_0.5.9
##  [9] rmarkdown_2.30    lifecycle_1.0.5   cli_3.6.5         sass_0.4.10
## [13] pkgdown_2.2.0     textshaping_1.0.4 jquerylib_0.1.4   systemfonts_1.3.1
## [17] compiler_4.4.0    tools_4.4.0       ragg_1.5.0        bslib_0.9.0
## [21] evaluate_1.0.5    yaml_2.3.12       otel_0.2.0        jsonlite_2.0.0
## [25] rlang_1.1.7       fs_1.6.6          htmlwidgets_1.6.4

Zaoqu Liu, Robert K. Suter, Nagi G. Ayad

2026-02-03
