Quiver Plot (Vector Field)

Creates quiver (arrow/vector field) plots showing 2D vector data. Used in physics (force/electric fields), fluid dynamics, and meteorology.

Usage

QuiverPlot(
  data,
  x,
  y,
  u,
  v,
  color_by = NULL,
  color_name = NULL,
  arrow_scale = 1,
  arrow_size = 0.15,
  line_width = 0.5,
  split_by = NULL,
  split_by_sep = "_",
  facet_by = NULL,
  facet_scales = "fixed",
  facet_nrow = NULL,
  facet_ncol = NULL,
  facet_byrow = TRUE,
  theme = "theme_ggforge_grid",
  theme_args = list(),
  palette = "Spectral",
  palcolor = NULL,
  alpha = 0.8,
  aspect.ratio = 1,
  legend.position = "right",
  legend.direction = "vertical",
  title = NULL,
  subtitle = NULL,
  xlab = NULL,
  ylab = NULL,
  seed = 8525,
  combine = TRUE,
  nrow = NULL,
  ncol = NULL,
  byrow = TRUE,
  axes = NULL,
  axis_titles = NULL,
  guides = NULL,
  design = NULL,
  ...
)

Arguments

data: A data frame containing the data to plot
x, y: Column names for arrow origin coordinates.
u, v: Column names for vector components (dx, dy).
color_by: Column for arrow coloring (e.g., magnitude). If NULL, auto-computes magnitude.
color_name: Legend title.
arrow_scale: Scaling factor for arrow length.
arrow_size: Size of arrowhead.
line_width: Arrow line width.
split_by: Column name(s) to split data into multiple plots
split_by_sep: Separator when concatenating multiple split_by columns
facet_by: Column name(s) for faceting the plot
facet_scales: Scales for facets: "fixed", "free", "free_x", "free_y"
facet_nrow: Number of rows in facet layout
facet_ncol: Number of columns in facet layout
facet_byrow: Fill facets by row (TRUE) or column (FALSE)
theme: Theme name (string) or theme function
theme_args: List of arguments passed to theme function
palette: Color palette name
palcolor: Custom colors for palette
alpha: Transparency level (0-1)
aspect.ratio: Aspect ratio of plot panel
legend.position: Legend position: "none", "left", "right", "bottom", "top"
legend.direction: Legend direction: "horizontal" or "vertical"
title: Plot title
subtitle: Plot subtitle
xlab: X-axis label
ylab: Y-axis label
seed: Random seed for reproducibility
combine: Whether to combine split plots into one
nrow: Number of rows when combining plots
ncol: Number of columns when combining plots
byrow: Fill combined plots by row
axes: How to handle axes in combined plots ("keep", "collect", "collect_x", "collect_y")
axis_titles: How to handle axis titles in combined plots
guides: How to handle guides in combined plots ("collect", "keep", "auto")
design: Custom layout design for combined plots
...: Additional arguments passed to atomic plotting functions.

Value

A ggplot object or combined plots

Examples

# \donttest{
grid <- expand.grid(x = seq(-2, 2, 0.4), y = seq(-2, 2, 0.4))
grid$u <- -grid$y
grid$v <- grid$x

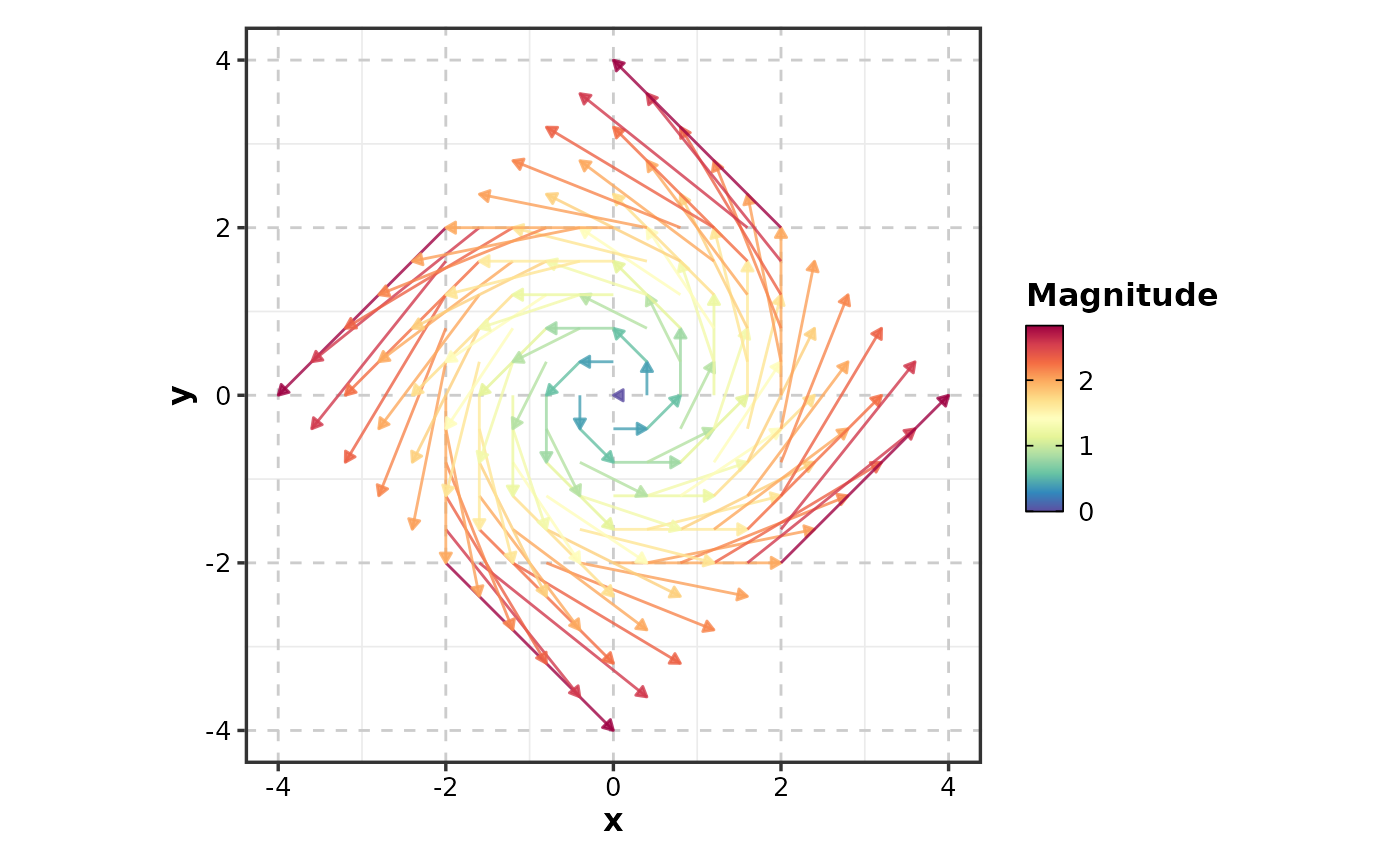

QuiverPlot(grid, x = "x", y = "y", u = "u", v = "v")

# }
