Cox Proportional-Hazards Model Visualization

Create publication-ready Cox proportional-hazards model visualizations including hazard ratio curves, forest plots (simple and detailed), with support for parallel computation and multiple visualization types.

Usage

CoxPlot(
  data,
  time = "time",
  event = "event",
  vars = NULL,
  var = NULL,
  plot_type = c("curve", "forest", "forest2"),
  scale = FALSE,
  nonExpression_ratio = 1,
  parallel = FALSE,
  n_cores = {
.dc <- parallel::detectCores()
     if (is.na(.dc))
         1L

    else max(1L, .dc - 6L)
 },
  ribbon_color = "#EFA63A",
  ribbon_alpha = 0.6,
  line_color = "#3a6ea5",
  line_type = 1,
  line_width = 1,
  show_cindex = TRUE,
  text_size = 3.5,
  text_digit = 3,
  text_face = "bold.italic",
  point_colors = c("#ED6355", "#118ab2", "grey"),
  point_size = 2,
  point_border_width = 0.5,
  point_border_size = 3,
  line_colors = point_colors,
  cutoff_vline_type = 2,
  cutoff_vline_width = 0.5,
  cutoff_vline_color = "grey30",
  x_log10_scale = FALSE,
  text_colors = "black",
  digits = 3,
  rel_width = c(0.8, 1.4, 1.2, 0.6),
  split_by = NULL,
  split_by_sep = "_",
  facet_by = NULL,
  facet_scales = "fixed",
  facet_ncol = NULL,
  facet_nrow = NULL,
  facet_byrow = TRUE,
  theme = "theme_ggforge",
  theme_args = list(),
  palette = "Paired",
  palcolor = NULL,
  alpha = 1,
  aspect.ratio = NULL,
  title = NULL,
  subtitle = NULL,
  xlab = NULL,
  ylab = NULL,
  legend.position = "bottom",
  legend.direction = "horizontal",
  combine = TRUE,
  nrow = NULL,
  ncol = NULL,
  byrow = TRUE,
  seed = 8525,
  axes = NULL,
  axis_titles = axes,
  guides = NULL,
  design = NULL,
  ...
)

Arguments

data: A data frame containing survival time, event status, and variables for Cox analysis.
time: Column name for time variable (numeric).
event: Column name for event status (1=event, 0=censored).
vars: Column name(s) for variables to include in Cox regression. If NULL, uses var.
var: Column name for single variable (used for curve plot or when vars is NULL).
plot_type: Type of Cox plot: "curve" (hazard ratio curve), "forest" (simple forest plot), or "forest2" (detailed forest plot with HR and p-value columns).
scale: Logical. Whether to standardize variables to z-scores before Cox regression.
nonExpression_ratio: Numeric. Threshold ratio for filtering non-expressed genes. If the proportion of zero values exceeds this ratio, the variable will be filtered out.
parallel: Logical. Whether to perform parallel computation for multiple variables.
n_cores: Integer. Number of cores to use for parallel computation. Default is detectCores() - 6 (minimum 1). Falls back to 1 if detectCores() returns NA (e.g. in sandboxed or container environments).
ribbon_color: Color for confidence interval ribbon (curve plot).
ribbon_alpha: Alpha transparency for ribbon (curve plot).
line_color: Color for hazard ratio line (curve plot).
line_type: Line type for hazard ratio curve.
line_width: Line width for hazard ratio curve.
show_cindex: Logical. Whether to show concordance index (Cindex) on plot.
text_size: Size of annotation text.
text_digit: Number of significant digits for text display.
text_face: Font face for annotation text.
point_colors: Vector of colors for points in forest plot. Default: c("#ED6355", "#118ab2", "grey") for Risky, Protective, NoSig.
point_size: Size of points in forest plot.
point_border_width: Border width of points.
point_border_size: Size of point borders.
line_colors: Colors for error bars in forest plot.
cutoff_vline_type: Line type for cutoff vertical line (HR = 1).
cutoff_vline_width: Line width for cutoff vertical line.
cutoff_vline_color: Color for cutoff vertical line.
x_log10_scale: Logical. Whether to use log10 scale for x-axis in forest plot.
text_colors: Text colors in forest2 plot.
digits: Number of significant digits for numeric display.
rel_width: Relative widths of columns in forest2 plot. Default: c(0.8, 1.4, 1.2, 0.6) for Variable, HR plot, HR text, P-value.
split_by: Column name(s) to split data into multiple plots
split_by_sep: Separator when concatenating multiple split_by columns
facet_by: Column name(s) for faceting the plot
facet_scales: Scales for facets: "fixed", "free", "free_x", "free_y"
facet_ncol: Number of columns in facet layout
facet_nrow: Number of rows in facet layout
facet_byrow: Fill facets by row (TRUE) or column (FALSE)
theme: Theme name (string) or theme function
theme_args: List of arguments passed to theme function
palette: Color palette name
palcolor: Custom colors for palette
alpha: Transparency level (0-1)
aspect.ratio: Aspect ratio of plot panel
title: Plot title
subtitle: Plot subtitle
xlab: X-axis label
ylab: Y-axis label
legend.position: Legend position: "none", "left", "right", "bottom", "top"
legend.direction: Legend direction: "horizontal" or "vertical"
combine: Whether to combine split plots into one
nrow: Number of rows when combining plots
ncol: Number of columns when combining plots
byrow: Fill combined plots by row
seed: Random seed for reproducibility
axes: How to handle axes in combined plots ("keep", "collect", "collect_x", "collect_y")
axis_titles: How to handle axis titles in combined plots
guides: How to handle guides in combined plots ("collect", "keep", "auto")
design: Custom layout design for combined plots
...: Additional arguments passed to atomic plotting functions.

Value

A ggplot object, patchwork object, or list of plots depending on settings

Examples

# \donttest{
# Prepare example data
library(survival)
data(lung)
#> Warning: data set ‘lung’ not found
lung$status <- lung$status - 1 # Convert to 0/1

# Single variable hazard ratio curve

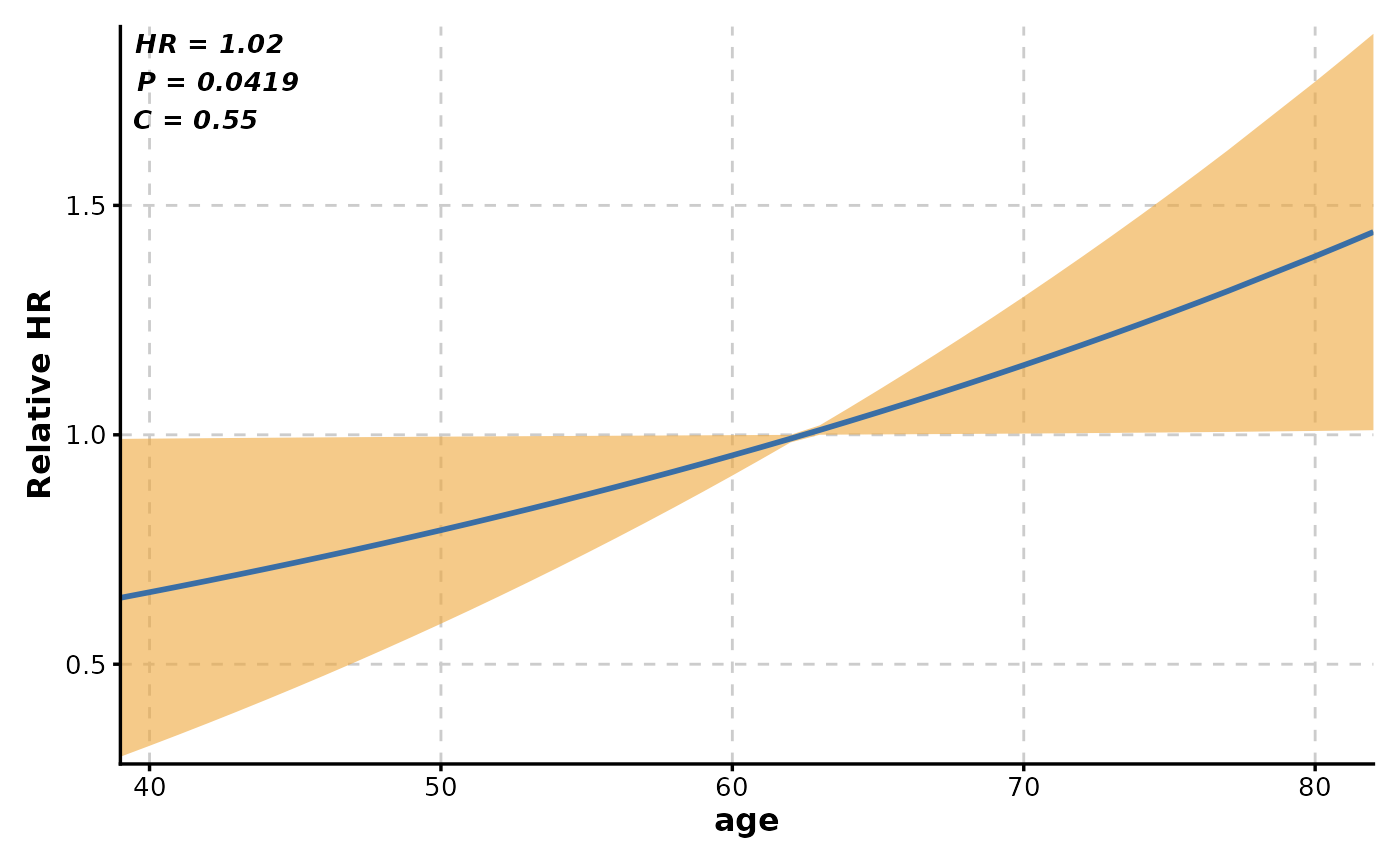

CoxPlot(
  data = lung,
  time = "time",
  event = "status",
  var = "age",
  plot_type = "curve"
)


# Multiple variables forest plot (simple)
CoxPlot(
  data = lung,
  time = "time",
  event = "status",

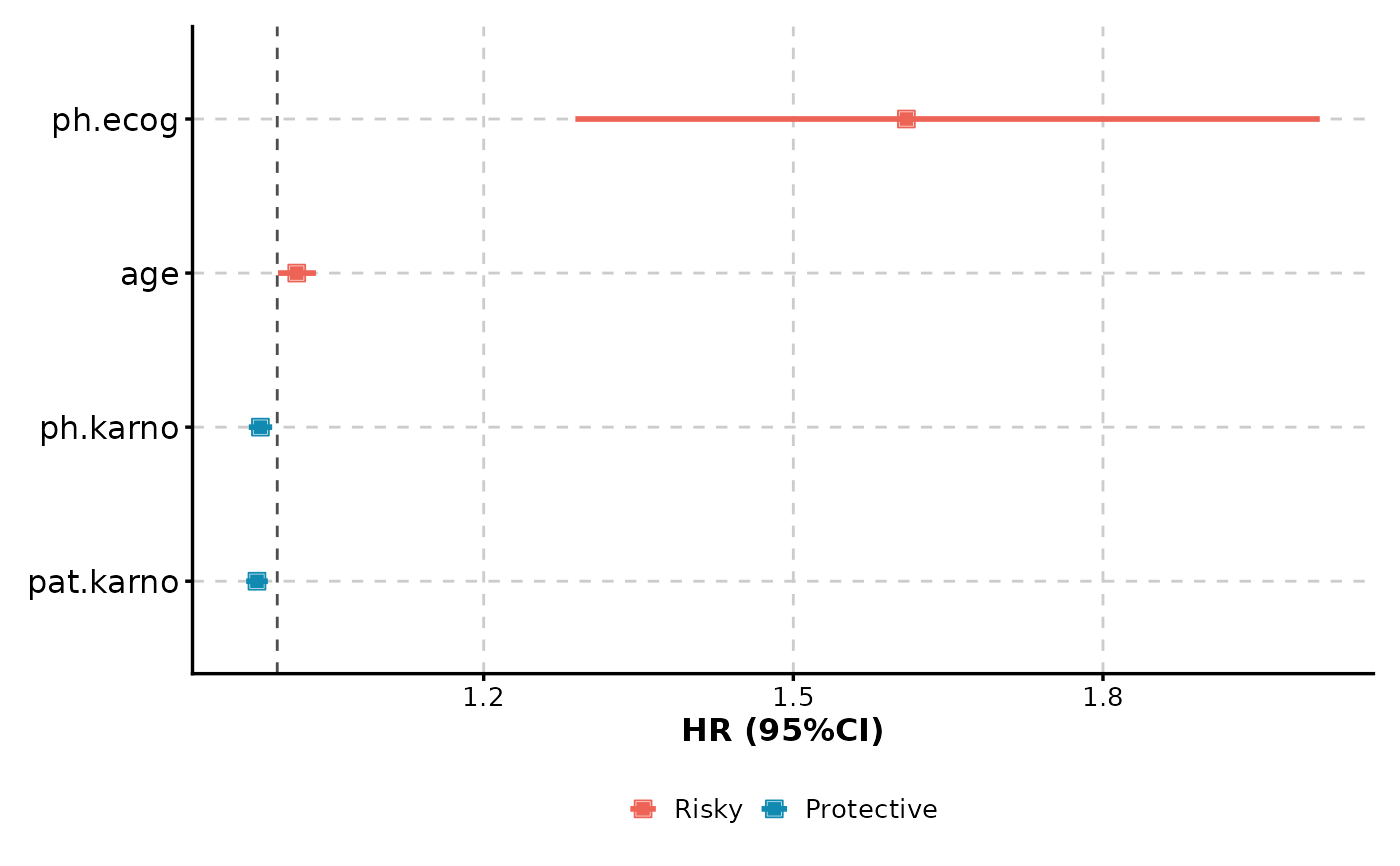

  vars = c("age", "ph.ecog", "ph.karno", "pat.karno"),
  plot_type = "forest"
)


# Multiple variables forest plot (detailed)
CoxPlot(
  data = lung,
  time = "time",
  event = "status",

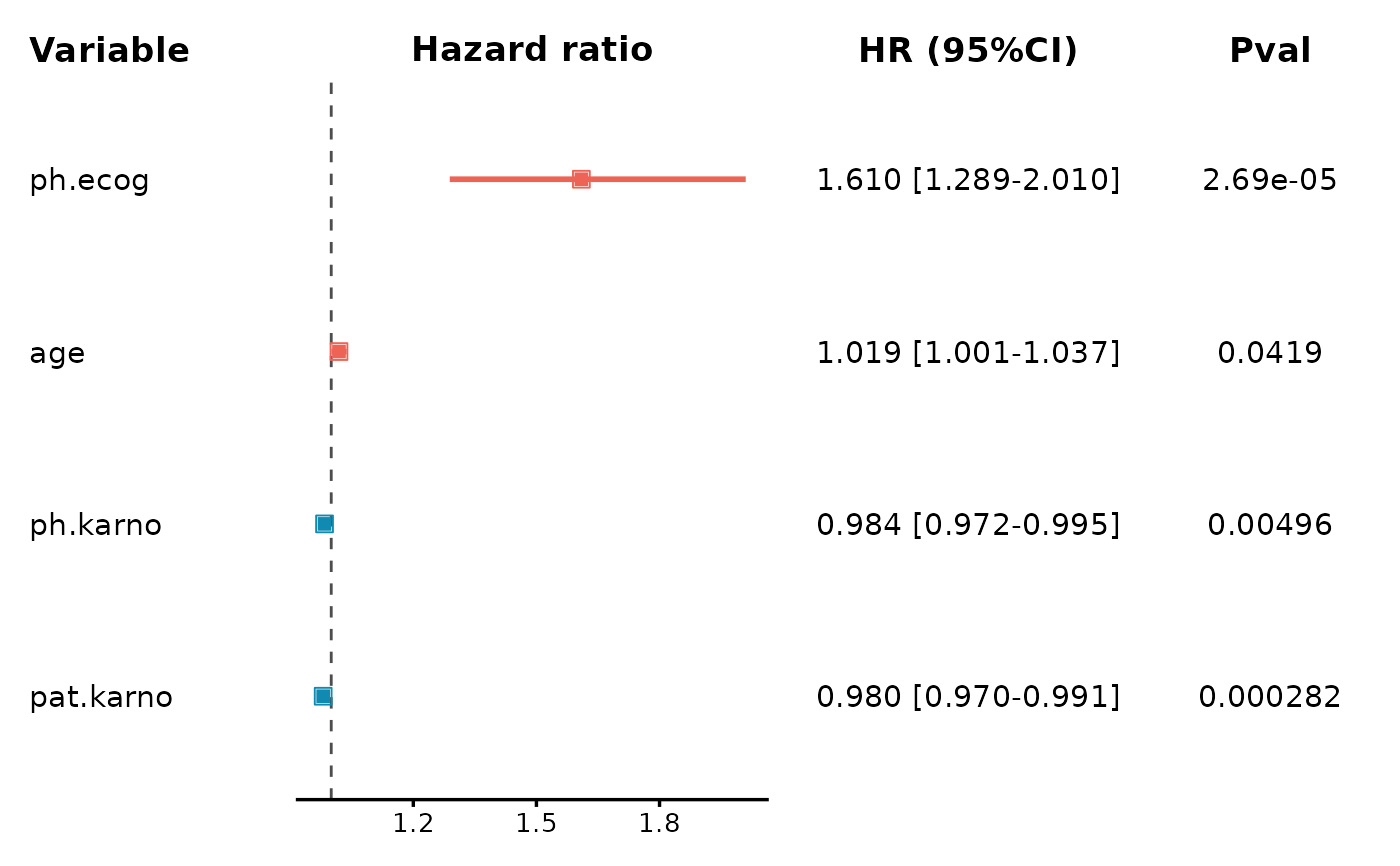

  vars = c("age", "ph.ecog", "ph.karno", "pat.karno"),
  plot_type = "forest2"
)

# }
