Dimension Reduction Plot — DimPlot • ggforge

Visualizes dimension reduction data (UMAP, t-SNE, PCA, etc.) as scatter plots. Supports both categorical grouping and continuous feature plotting with extensive customization options.

Usage

DimPlot(
  data,
  dims = 1:2,
  group_by = NULL,
  group_by_sep = "_",
  split_by = NULL,
  split_by_sep = "_",
  pt_size = NULL,
  pt_alpha = 1,
  bg_color = "grey80",
  label = FALSE,
  label_insitu = FALSE,
  label_size = 4,
  label_fg = "white",
  label_bg = "black",
  label_bg_r = 0.1,
  label_repel = FALSE,
  label_repulsion = 20,
  label_pt_size = 1,
  label_pt_color = "black",
  label_segment_color = "black",
  show_stat = !identical(theme, "theme_blank"),
  order = c("as-is", "reverse", "high-top", "low-top", "random"),
  highlight = NULL,
  highlight_alpha = 1,
  highlight_size = 1,
  highlight_color = "black",
  highlight_stroke = 0.8,
  add_mark = FALSE,
  mark_type = c("hull", "ellipse", "rect", "circle"),
  mark_expand = grid::unit(3, "mm"),
  mark_alpha = 0.1,
  mark_linetype = 1,
  add_density = FALSE,
  density_color = "grey80",
  density_filled = FALSE,
  density_filled_palette = "Greys",
  density_filled_palcolor = NULL,
  raster = NULL,
  raster_dpi = c(512, 512),
  hex = FALSE,
  hex_linewidth = 0.5,
  hex_count = TRUE,
  hex_bins = 50,
  hex_binwidth = NULL,
  facet_by = NULL,
  facet_scales = "fixed",
  facet_nrow = NULL,
  facet_ncol = NULL,
  facet_byrow = TRUE,
  theme = "theme_ggforge_grid",
  theme_args = list(),
  palette = "Paired",
  palcolor = NULL,
  alpha = 1,
  aspect.ratio = NULL,
  legend.position = "right",
  legend.direction = "vertical",
  title = NULL,
  subtitle = NULL,
  xlab = NULL,
  ylab = NULL,
  keep_empty = FALSE,
  seed = 8525,
  combine = TRUE,
  nrow = NULL,
  ncol = NULL,
  byrow = TRUE,
  axes = NULL,
  axis_titles = NULL,
  guides = NULL,
  design = NULL,
  ...
)

Arguments

data: A data frame containing the data to plot
dims: Column names or indices for x and y axes. Default is first two columns.
group_by: Column name for categorical grouping. Creates discrete color mapping. If multiple columns provided, they will be concatenated with group_by_sep.
group_by_sep: Separator for concatenating multiple group_by columns.
split_by: Column name(s) to split data into multiple plots
split_by_sep: Separator when concatenating multiple split_by columns
pt_size: Point size. If NULL, calculated based on number of data points.
pt_alpha: Point transparency (0-1).
bg_color: Color for NA/background points.
label: Whether to show group labels at median positions.
label_insitu: Whether to use actual group names as labels (vs. numbers).
label_size: Size of labels.
label_fg, label_bg: Foreground and background colors for labels.
label_bg_r: Background radius for labels.
label_repel: Whether to repel overlapping labels.
label_repulsion: Repulsion force for labels.
label_pt_size, label_pt_color: Point size and color for label anchors.
label_segment_color: Color of segments connecting labels to points.
show_stat: Whether to show sample count in subtitle.
order: How to order points: "as-is", "reverse", "high-top", "low-top", "random". Affects drawing order (what's on top).
highlight: Row names/indices to highlight, or logical expression as string.
highlight_alpha, highlight_size, highlight_color, highlight_stroke: Styling for highlighted points.
add_mark: Whether to add marks (hulls/ellipses) around groups.
mark_type: Type of mark: "hull", "ellipse", "rect", "circle".
mark_expand, mark_alpha, mark_linetype: Mark styling parameters.
add_density: Whether to add 2D density contours/fill.
density_color, density_filled: Density styling.
density_filled_palette, density_filled_palcolor: Palette for filled density.
raster: Whether to rasterize points (useful for large datasets).
raster_dpi: DPI for rasterization.
hex: Whether to use hexagonal binning instead of points.
hex_linewidth, hex_count, hex_bins, hex_binwidth: Hex bin parameters.
facet_by: Column name(s) for faceting the plot
facet_scales: Scales for facets: "fixed", "free", "free_x", "free_y"
facet_nrow: Number of rows in facet layout
facet_ncol: Number of columns in facet layout
facet_byrow: Fill facets by row (TRUE) or column (FALSE)
theme: Theme name (string) or theme function
theme_args: List of arguments passed to theme function
palette: Color palette name
palcolor: Custom colors for palette
alpha: Transparency level (0-1)
aspect.ratio: Aspect ratio of plot panel
legend.position: Legend position: "none", "left", "right", "bottom", "top"
legend.direction: Legend direction: "horizontal" or "vertical"
title: Plot title
subtitle: Plot subtitle
xlab: X-axis label
ylab: Y-axis label
keep_empty: Keep empty factor levels
seed: Random seed for reproducibility
combine: Whether to combine split plots into one
nrow: Number of rows when combining plots
ncol: Number of columns when combining plots
byrow: Fill combined plots by row
axes: How to handle axes in combined plots ("keep", "collect", "collect_x", "collect_y")
axis_titles: How to handle axis titles in combined plots
guides: How to handle guides in combined plots ("collect", "keep", "auto")
design: Custom layout design for combined plots
...: Additional arguments passed to atomic plotting functions.

Value

A ggplot object or list/combined plots

Examples

# \donttest{
# Basic usage with dim_example dataset
DimPlot(dim_example, dims = 1:2, group_by = "clusters")

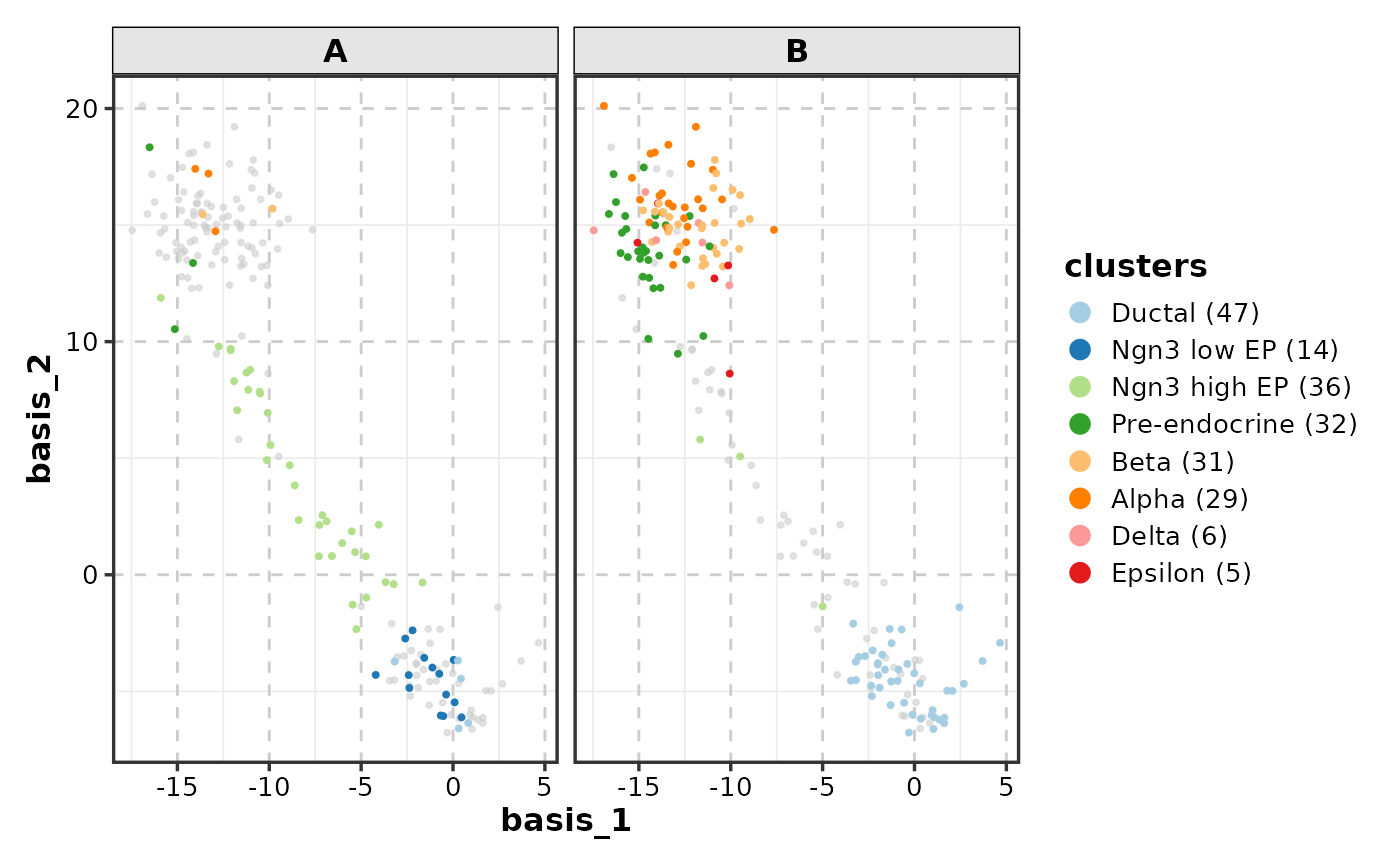

# With faceting
DimPlot(dim_example, dims = 1:2, group_by = "clusters", facet_by = "group")

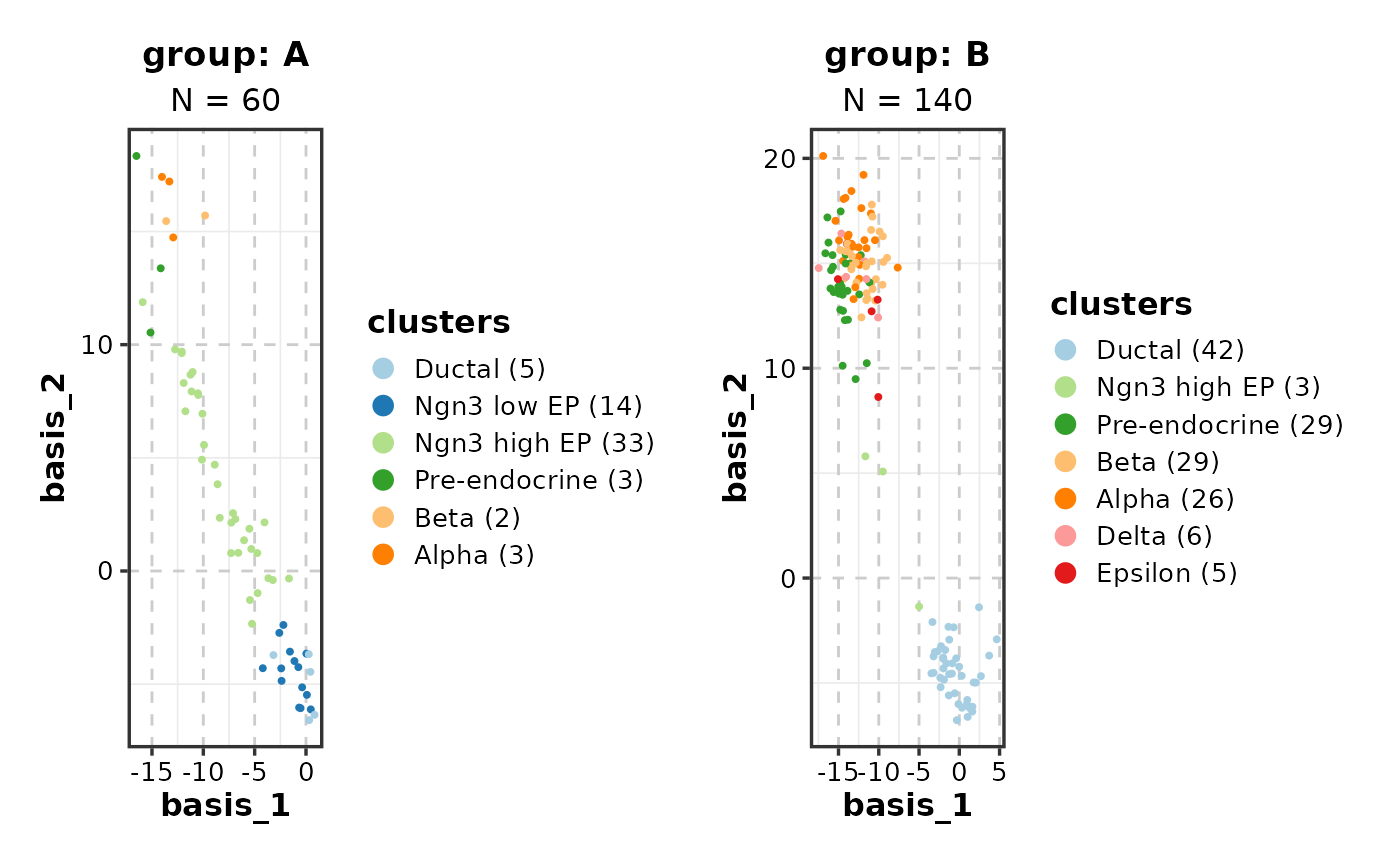

# With splitting
DimPlot(dim_example, dims = 1:2, group_by = "clusters", split_by = "group")

# }
