Creates trend plots that combine area and bar visualizations to show trends. Like an area plot but with gaps between the bars. Supports splitting by groups, faceting, and custom color palettes.
Usage
TrendPlot(
data,
x,
y = NULL,
x_sep = "_",
split_by = NULL,
split_by_sep = "_",
group_by = NULL,
group_by_sep = "_",
group_name = NULL,
scale_y = FALSE,
theme = "theme_ggforge",
theme_args = list(),
palette = "Paired",
palcolor = NULL,
alpha = 1,
facet_by = NULL,
facet_scales = "fixed",
facet_ncol = NULL,
facet_nrow = NULL,
facet_byrow = TRUE,
x_text_angle = 0,
aspect.ratio = NULL,
legend.position = ggplot2::waiver(),
legend.direction = "vertical",
title = NULL,
subtitle = NULL,
xlab = NULL,
ylab = NULL,
combine = TRUE,
nrow = NULL,
ncol = NULL,
byrow = TRUE,
seed = 8525,
axes = NULL,
axis_titles = axes,
guides = NULL,
design = NULL,
...
)Arguments
- data
A data frame containing the data to plot
- x
Column name for x-axis variable
- y
Column name for y-axis variable
- x_sep
Separator for concatenating multiple x columns.
- split_by
Column name(s) to split data into multiple plots
- split_by_sep
Separator when concatenating multiple split_by columns
- group_by
Column name(s) for grouping data
- group_by_sep
Separator when concatenating multiple group_by columns
- group_name
Name for the group legend.
- scale_y
Whether to scale y-axis to proportions (0-1).
- theme
Theme name (string) or theme function
- theme_args
List of arguments passed to theme function
- palette
Color palette name
- palcolor
Custom colors for palette
- alpha
Transparency level (0-1)
- facet_by
Column name(s) for faceting the plot
- facet_scales
Scales for facets: "fixed", "free", "free_x", "free_y"
- facet_ncol
Number of columns in facet layout
- facet_nrow
Number of rows in facet layout
- facet_byrow
Fill facets by row (TRUE) or column (FALSE)
- x_text_angle
Angle for x-axis text labels
- aspect.ratio
Aspect ratio of plot panel
- legend.position
Legend position: "none", "left", "right", "bottom", "top"
- legend.direction
Legend direction: "horizontal" or "vertical"
- title
Plot title
- subtitle
Plot subtitle
- xlab
X-axis label
- ylab
Y-axis label
- combine
Whether to combine split plots into one
- nrow
Number of rows when combining plots
- ncol
Number of columns when combining plots
- byrow
Fill combined plots by row
- seed
Random seed for reproducibility
- axes
How to handle axes in combined plots ("keep", "collect", "collect_x", "collect_y")
- axis_titles
How to handle axis titles in combined plots
- guides
How to handle guides in combined plots ("collect", "keep", "auto")
- design
Custom layout design for combined plots
- ...
Additional arguments passed to atomic plotting functions.
Examples
# Create sample data
data <- data.frame(
x = rep(c("A", "B", "C", "D"), 2),
y = c(1, 3, 6, 4, 2, 5, 7, 8),
group = rep(c("F1", "F2"), each = 4)
)

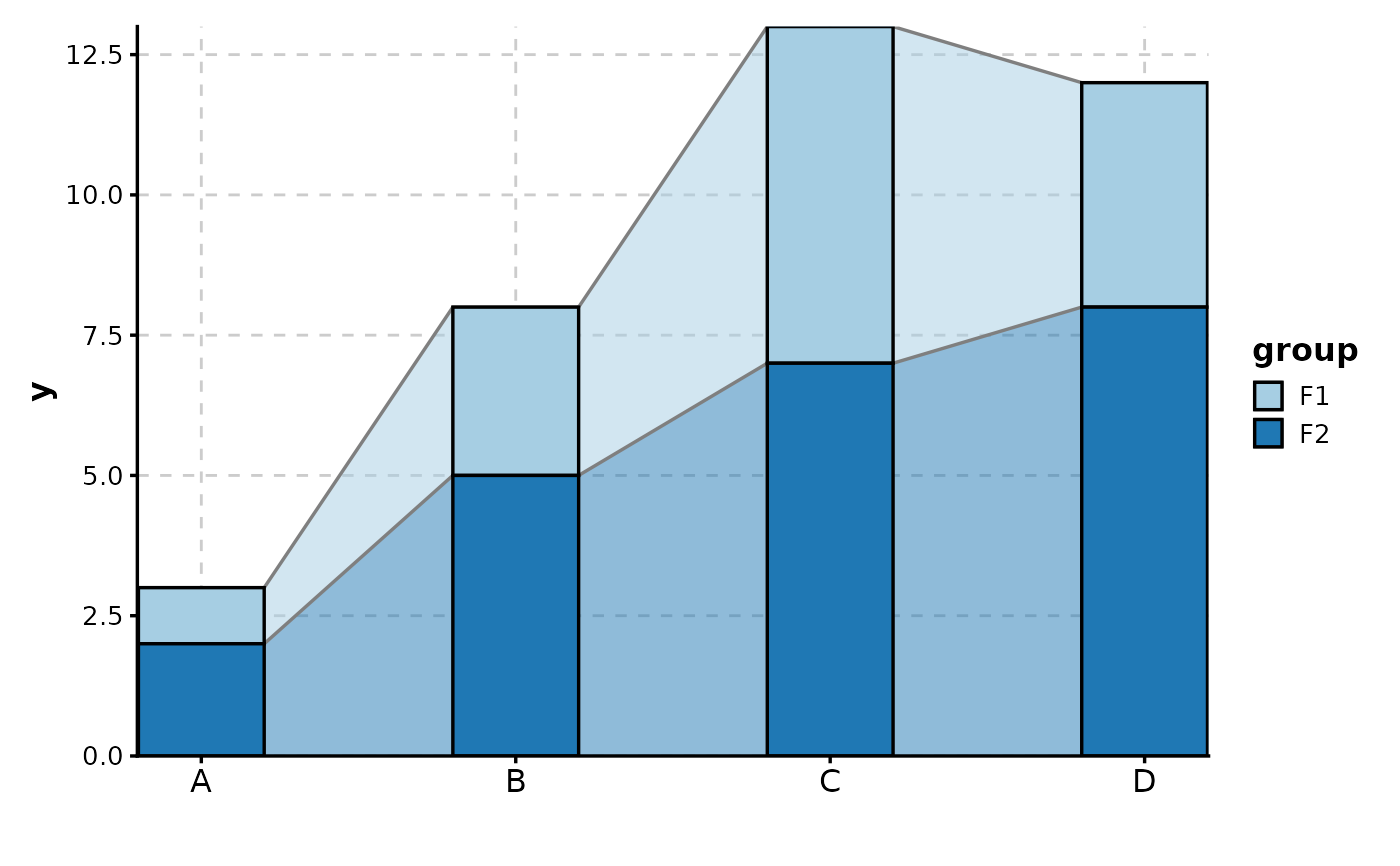

# Basic trend plot
TrendPlot(data, x = "x", y = "y", group_by = "group")

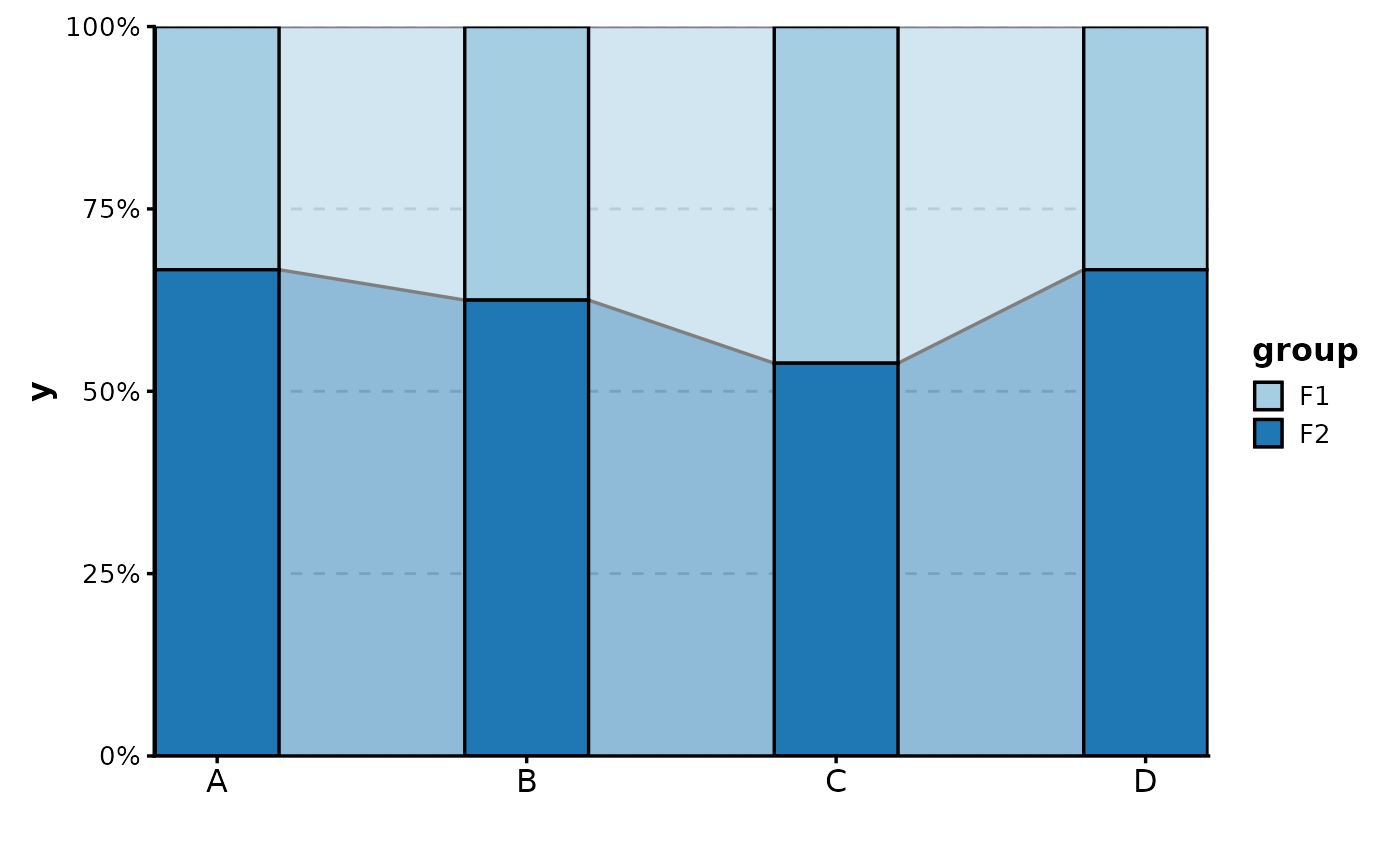

# With scaled y-axis
TrendPlot(data, x = "x", y = "y", group_by = "group", scale_y = TRUE)

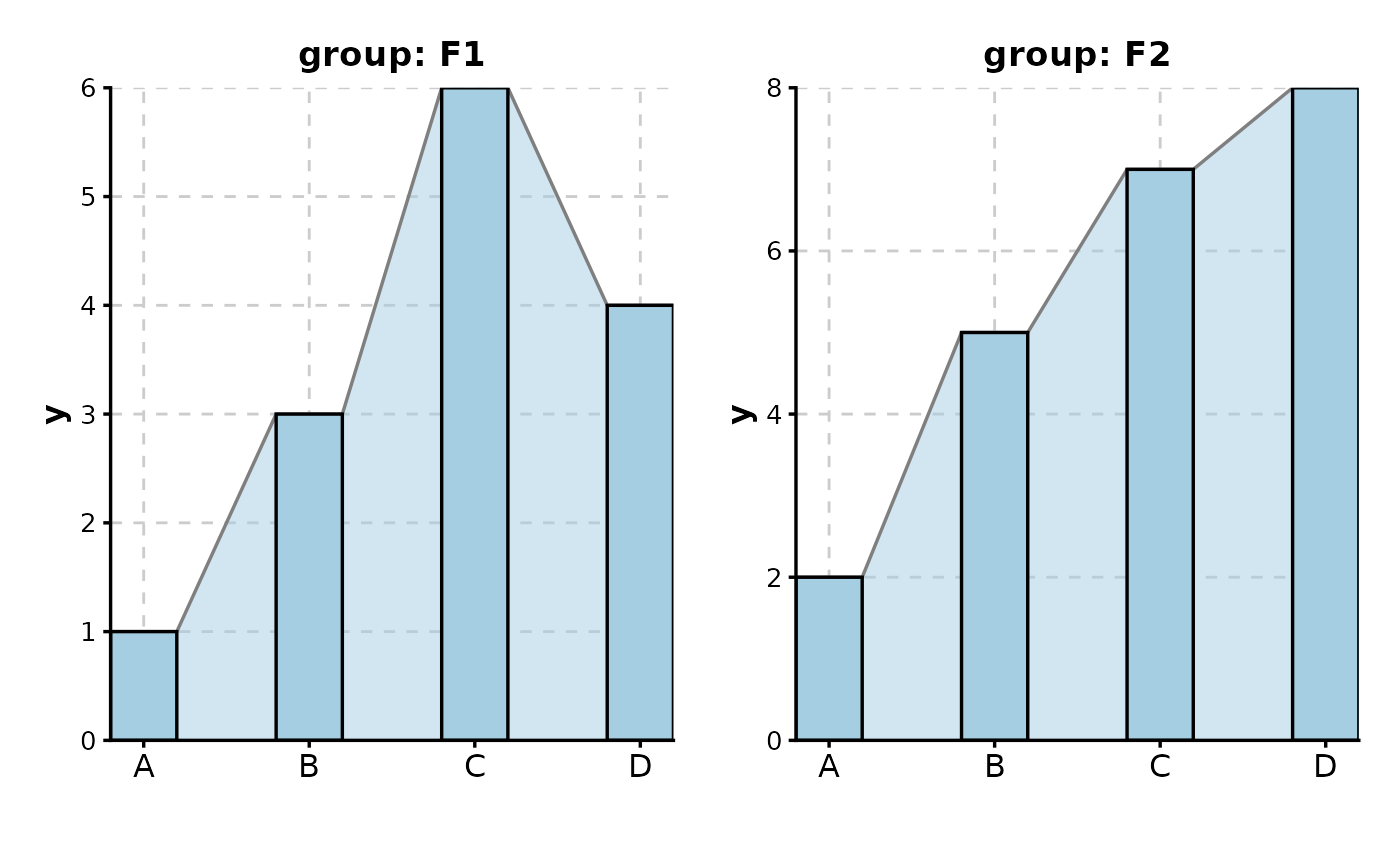

# Split by group
TrendPlot(data, x = "x", y = "y", split_by = "group")

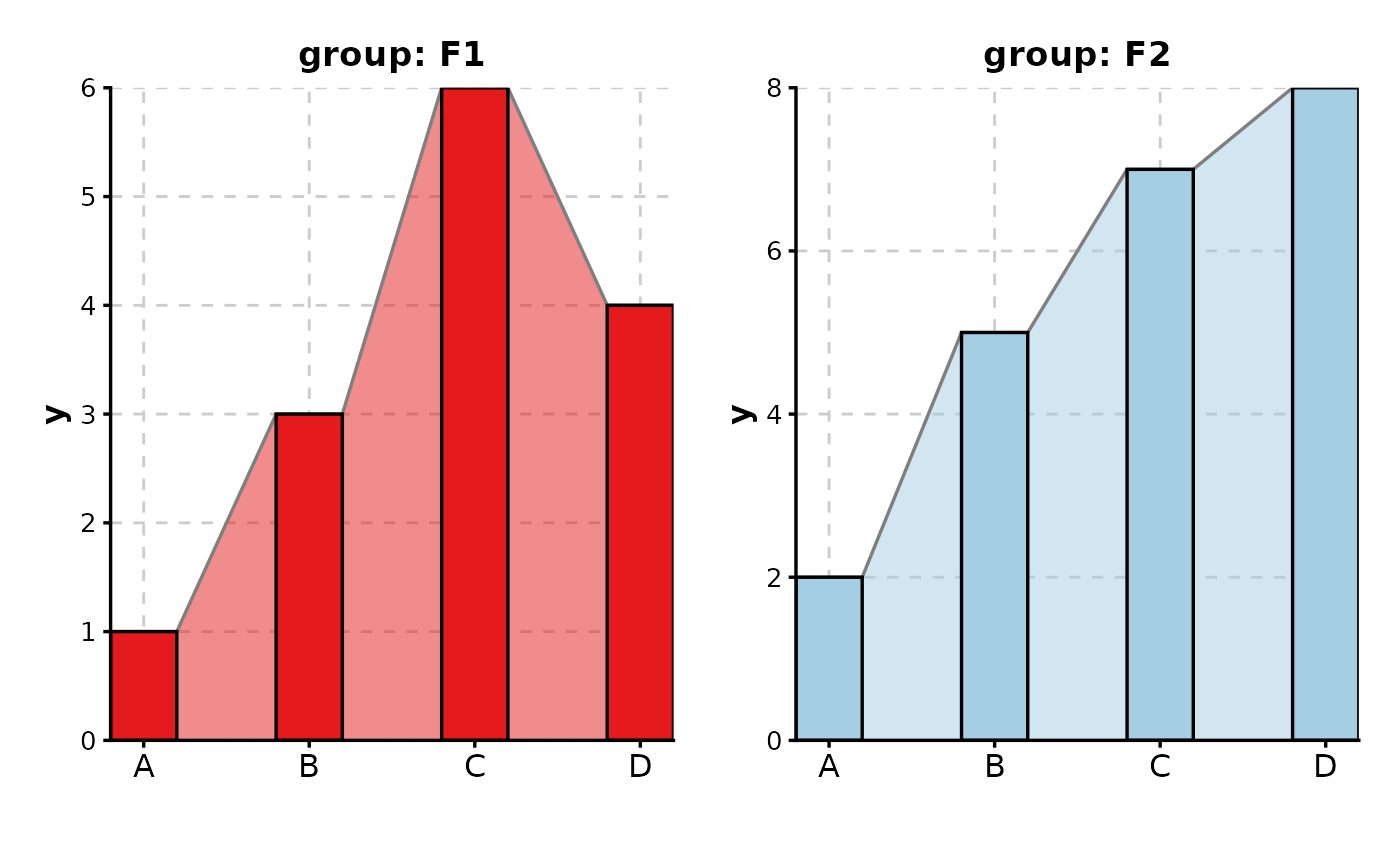

# Custom palettes per split
TrendPlot(data,
x = "x", y = "y", split_by = "group",
palette = list(F1 = "Set1", F2 = "Paired")
)
