Split Bar Plot (Waterfall Plot) — SplitBarPlot • ggforge

Create a split bar plot showing positive and negative values on opposite sides of a central axis. Also known as a waterfall plot or diverging bar plot.

This is useful for showing data that has both positive and negative values, such as survey responses (agree/disagree), changes (increase/decrease), or any data with bidirectional nature.

Usage

SplitBarPlot(
  data,
  x,
  y,
  y_sep = "_",
  flip = FALSE,
  split_by = NULL,
  split_by_sep = "_",
  alpha_by = NULL,
  alpha_reverse = FALSE,
  alpha_name = NULL,
  order_y = list(`+` = c("x_desc", "alpha_desc"), `-` = c("x_desc", "alpha_asc")),
  bar_height = 0.9,
  lineheight = 0.5,
  max_charwidth = 80,
  fill_by = NULL,
  fill_by_sep = "_",
  fill_name = NULL,
  direction_pos_name = "positive",
  direction_neg_name = "negative",
  theme = "theme_ggforge",
  theme_args = list(),
  palette = "Spectral",
  palcolor = NULL,
  facet_by = NULL,
  facet_scales = "free_y",
  facet_nrow = NULL,
  facet_ncol = NULL,
  facet_byrow = TRUE,
  aspect.ratio = NULL,
  x_min = NULL,
  x_max = NULL,
  legend.position = "right",
  legend.direction = "vertical",
  title = NULL,
  subtitle = NULL,
  xlab = NULL,
  ylab = NULL,
  keep_empty = FALSE,
  combine = TRUE,
  nrow = NULL,
  ncol = NULL,
  byrow = TRUE,
  seed = 8525,
  axes = NULL,
  axis_titles = axes,
  guides = NULL,
  design = NULL,
  ...
)

WaterfallPlot(
  data,
  x,
  y,
  y_sep = "_",
  flip = FALSE,
  split_by = NULL,
  split_by_sep = "_",
  alpha_by = NULL,
  alpha_reverse = FALSE,
  alpha_name = NULL,
  order_y = list(`+` = c("x_desc", "alpha_desc"), `-` = c("x_desc", "alpha_asc")),
  bar_height = 0.9,
  lineheight = 0.5,
  max_charwidth = 80,
  fill_by = NULL,
  fill_by_sep = "_",
  fill_name = NULL,
  direction_pos_name = "positive",
  direction_neg_name = "negative",
  theme = "theme_ggforge",
  theme_args = list(),
  palette = "Spectral",
  palcolor = NULL,
  facet_by = NULL,
  facet_scales = "free_y",
  facet_nrow = NULL,
  facet_ncol = NULL,
  facet_byrow = TRUE,
  aspect.ratio = NULL,
  x_min = NULL,
  x_max = NULL,
  legend.position = "right",
  legend.direction = "vertical",
  title = NULL,
  subtitle = NULL,
  xlab = NULL,
  ylab = NULL,
  keep_empty = FALSE,
  combine = TRUE,
  nrow = NULL,
  ncol = NULL,
  byrow = TRUE,
  seed = 8525,
  axes = NULL,
  axis_titles = axes,
  guides = NULL,
  design = NULL,
  ...
)

Arguments

data: A data frame containing the data to plot
x: Column for x-axis values (numeric, positive and negative).
y: Column(s) for y-axis categories. Will be converted to factor.
y_sep: Separator for concatenating multiple y columns.
flip: Flip x and y axes.
split_by: Column name(s) to split data into multiple plots
split_by_sep: Separator when concatenating multiple split_by columns
alpha_by: Column to use for transparency (alpha values).
alpha_reverse: Reverse the alpha scale.
alpha_name: Legend title for alpha.
order_y: Ordering specification for y-axis. List with "+" and "-" keys for positive/negative ordering, or "*" for overall. Values can be "x_asc", "x_desc", "alpha_asc", "alpha_desc".
bar_height: Height of bars (0-1).
lineheight: Line height for wrapped text labels.
max_charwidth: Maximum characters before wrapping y-axis labels.
fill_by: Column for fill colors (default: direction).
fill_by_sep: Separator for concatenating multiple fill columns.
fill_name: Legend title for fill.
direction_pos_name: Label for positive direction.
direction_neg_name: Label for negative direction.
theme: Theme name (string) or theme function
theme_args: List of arguments passed to theme function
palette: Color palette name
palcolor: Custom colors for palette
facet_by: Column name(s) for faceting the plot
facet_scales: Scales for facets: "fixed", "free", "free_x", "free_y"
facet_nrow: Number of rows in facet layout
facet_ncol: Number of columns in facet layout
facet_byrow: Fill facets by row (TRUE) or column (FALSE)
aspect.ratio: Aspect ratio of plot panel
x_min: Minimum x-axis value.
x_max: Maximum x-axis value.
legend.position: Legend position: "none", "left", "right", "bottom", "top"
legend.direction: Legend direction: "horizontal" or "vertical"
title: Plot title
subtitle: Plot subtitle
xlab: X-axis label
ylab: Y-axis label
keep_empty: Keep empty factor levels
combine: Whether to combine split plots into one
nrow: Number of rows when combining plots
ncol: Number of columns when combining plots
byrow: Fill combined plots by row
seed: Random seed for reproducibility
axes: How to handle axes in combined plots ("keep", "collect", "collect_x", "collect_y")
axis_titles: How to handle axis titles in combined plots
guides: How to handle guides in combined plots ("collect", "keep", "auto")
design: Custom layout design for combined plots
...: Additional arguments passed to atomic plotting functions.

Value

A ggplot object, list of plots, or combined plots

Examples

# \donttest{

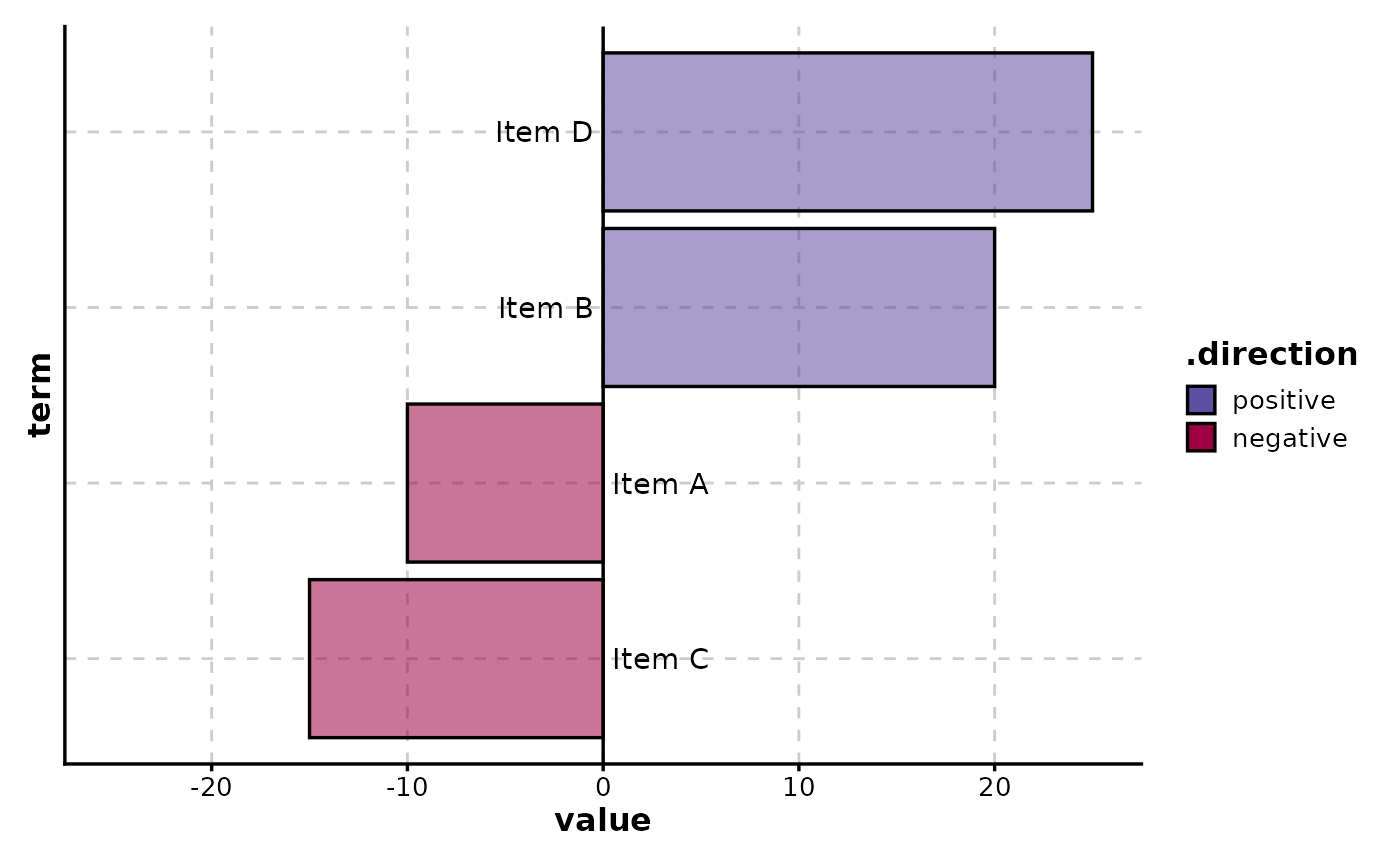

# Basic split bar plot (diverging bars)
data <- data.frame(
  term = c("Item A", "Item B", "Item C", "Item D"),
  value = c(-10, 20, -15, 25),
  importance = c(1, 3, 2, 4)
)
SplitBarPlot(data, x = "value", y = "term")

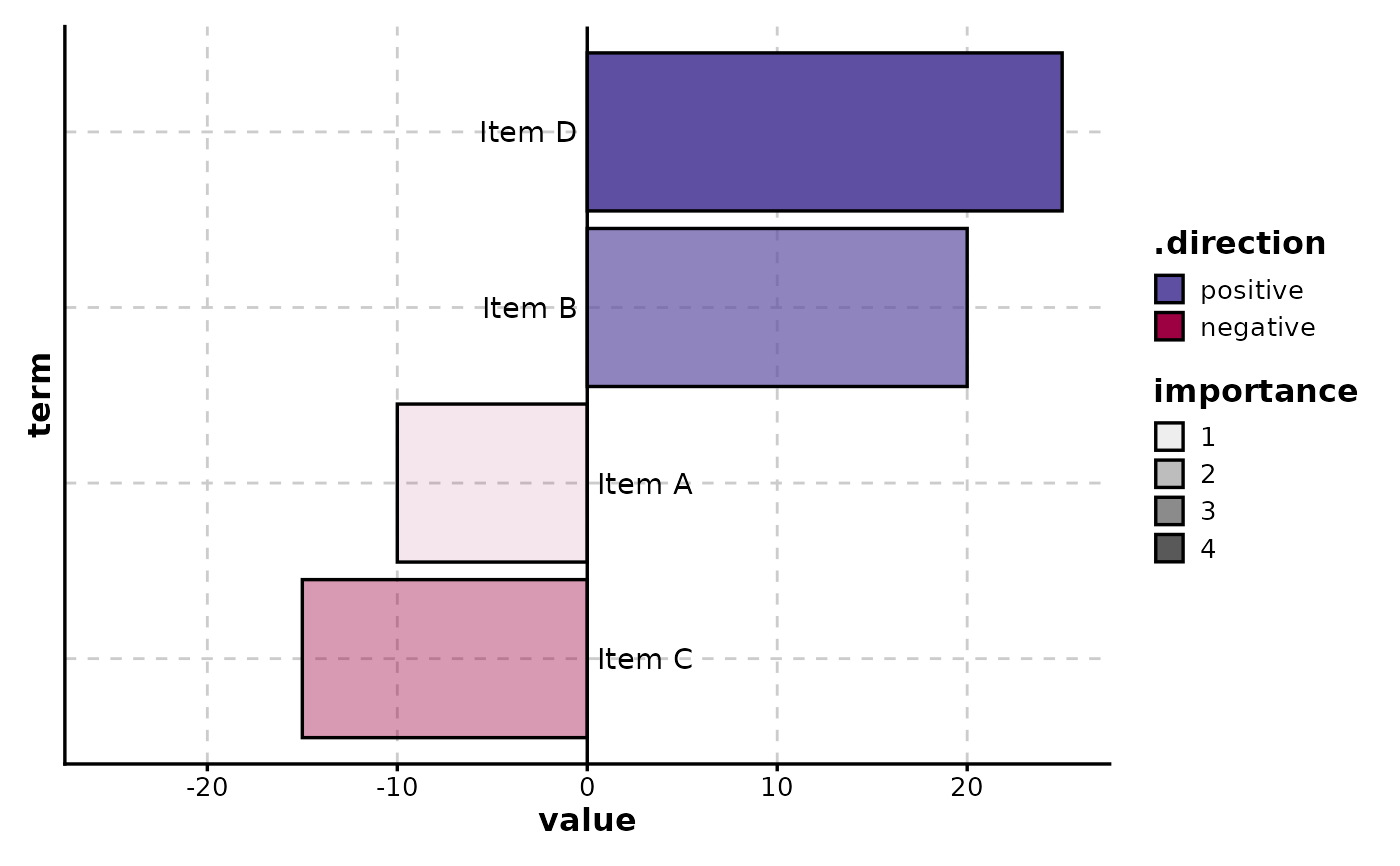

# With alpha mapping to show importance
SplitBarPlot(data, x = "value", y = "term", alpha_by = "importance")


# With custom fill groups
data$category <- c("Type A", "Type A", "Type B", "Type B")
SplitBarPlot(data, x = "value", y = "term", fill_by = "category")


# Custom ordering (by value descending for positive, ascending for negative)
SplitBarPlot(
  data,
  x = "value", y = "term",
  order_y = list("+" = "x_desc", "-" = "x_asc")
)

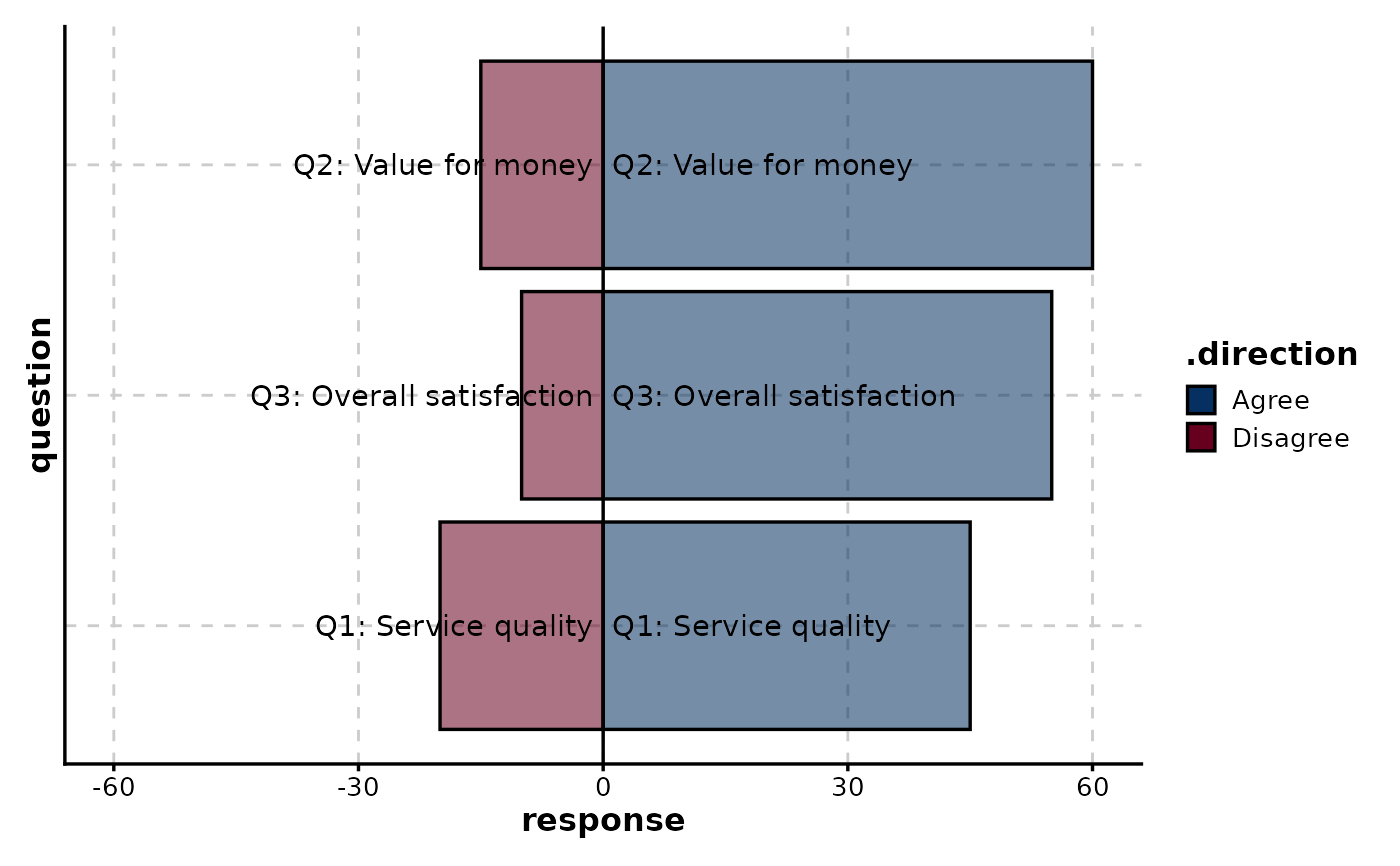

# Survey-style diverging bars (e.g., agree/disagree)
survey_data <- data.frame(
  question = rep(c(
    "Q1: Service quality", "Q2: Value for money",
    "Q3: Overall satisfaction"
  ), 2),
  response = c(45, 60, 55, -20, -15, -10),
  group = rep(c("Positive", "Negative"), each = 3)
)
SplitBarPlot(
  survey_data,
  x = "response", y = "question",
  direction_pos_name = "Agree",
  direction_neg_name = "Disagree",
  palette = "RdBu"
)

# }
