Creates density plots to illustrate the distribution of continuous data. Supports grouping, faceting, and splitting into multiple plots.
Usage
DensityPlot(
data,
x,
group_by = NULL,
group_by_sep = "_",
group_name = NULL,
xtrans = "identity",
ytrans = "identity",
split_by = NULL,
split_by_sep = "_",
flip = FALSE,
position = "identity",
palette = "Paired",
palcolor = NULL,
alpha = 0.5,
theme = "theme_ggforge",
theme_args = list(),
add_rug = FALSE,
rug_alpha = 0.5,
rug_length = 0.03,
add_bars = FALSE,
bar_height = 0.025,
bar_alpha = 1,
bar_width = 0.1,
title = NULL,
subtitle = NULL,
xlab = NULL,
ylab = NULL,
expand = c(bottom = 0, left = 0, right = 0),
facet_by = NULL,
facet_scales = "free_y",
facet_ncol = NULL,
facet_nrow = NULL,
facet_byrow = TRUE,
legend.position = waiver(),
legend.direction = "vertical",
seed = 8525,
combine = TRUE,
nrow = NULL,
ncol = NULL,
byrow = TRUE,
axes = NULL,
axis_titles = axes,
guides = NULL,
design = NULL,
...
)Arguments
- data
A data frame containing the data to plot
- x
Column name for values (numeric expected)
- group_by
Column to group the data
- group_by_sep
Separator for concatenating multiple group_by columns
- group_name
Legend title for group_by
- xtrans
Transformation for x-axis (e.g., "identity", "log10")
- ytrans
Transformation for y-axis
- split_by
Column to split data into multiple plots
- split_by_sep
Separator for concatenating multiple split_by columns
- flip
Whether to flip the plot
- position
Position adjustment for overlapping groups
- palette
Palette name
- palcolor
Custom colors
- alpha
Transparency for density curves
- theme
Theme name or function
- theme_args
Arguments passed to theme function
- add_rug
Whether to add rug marks at bottom showing individual data points.
- rug_alpha
Alpha transparency for rug marks.
- rug_length
Length of rug marks as fraction of plot.
- add_bars
Whether to add data distribution lines at bottom
- bar_height
Height of distribution bars (as fraction of max)
- bar_alpha
Alpha for distribution bars
- bar_width
Width of distribution bars
- title
Plot title
- subtitle
Plot subtitle
- xlab
X-axis label
- ylab
Y-axis label
- expand
Axis expansion
- facet_by
Columns for faceting
- facet_scales
Facet scales type
- facet_ncol
Number of facet columns
- facet_nrow
Number of facet rows
- facet_byrow
Fill facets by row
- legend.position
Legend position
- legend.direction
Legend direction
- seed
Random seed
- combine
Whether to combine multiple plots
- nrow
Number of rows for combined plots
- ncol
Number of columns for combined plots
- byrow
Fill combined plots by row
- axes
Axis handling for combined plots
- axis_titles
Axis title handling for combined plots
- guides
Guide handling for combined plots
- design
Custom design for combined plots
- ...
Additional arguments passed to geom_density
Examples
set.seed(8525)
data <- data.frame(
x = c(rnorm(500, -1), rnorm(500, 1)),
group = rep(c("A", "B"), each = 500),
facet = sample(c("F1", "F2"), 1000, replace = TRUE)
)

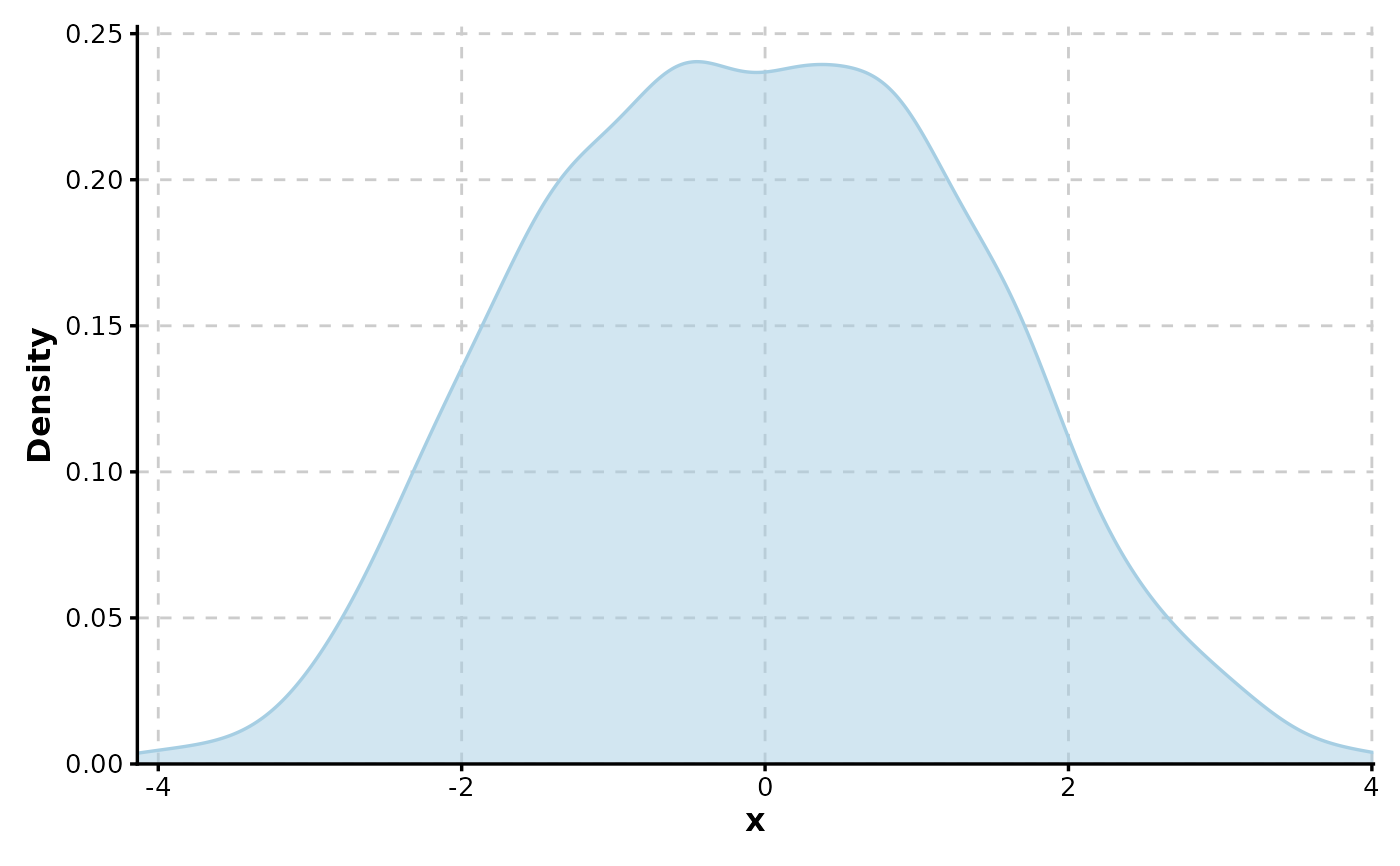

DensityPlot(data, x = "x")

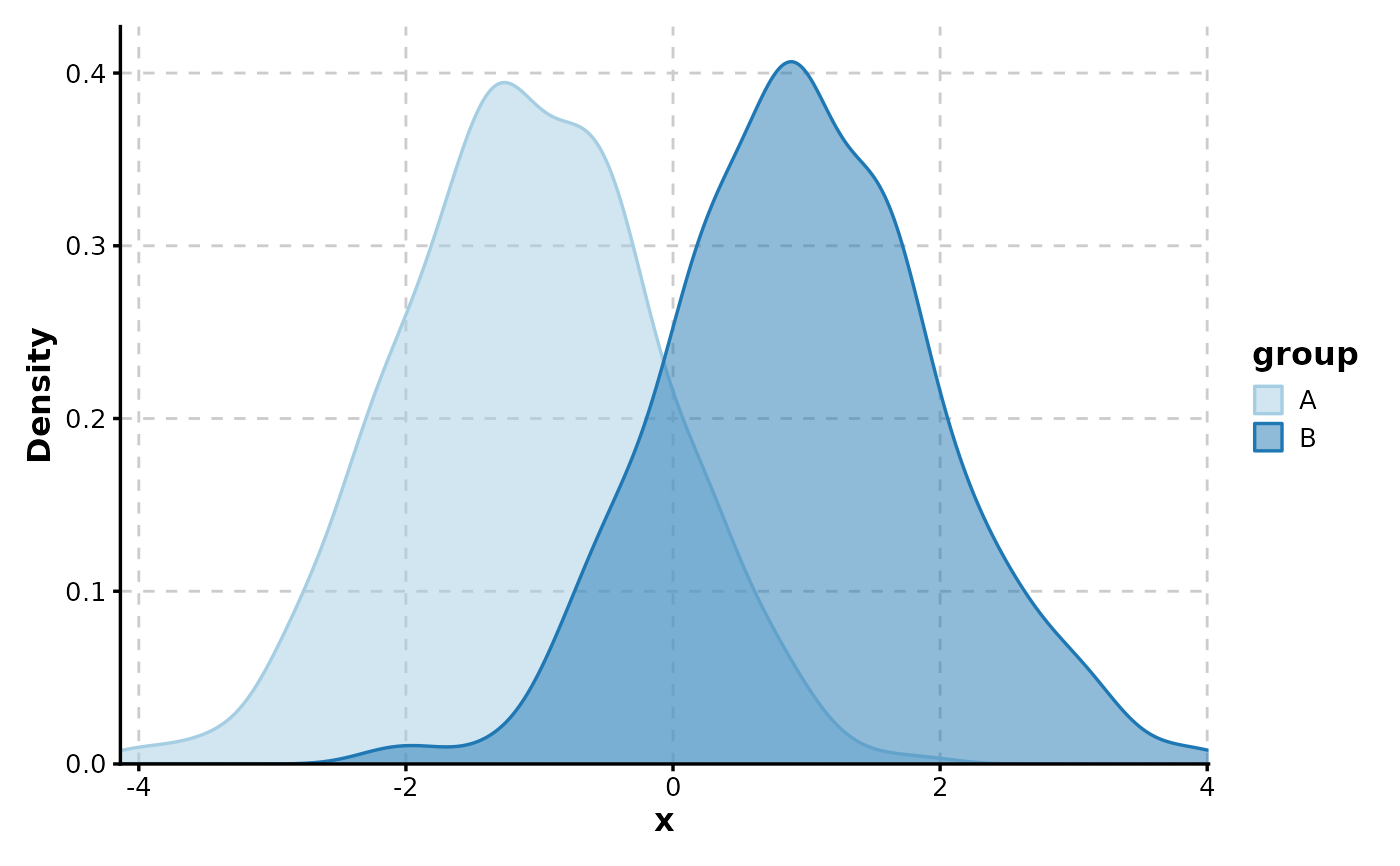

DensityPlot(data, x = "x", group_by = "group")

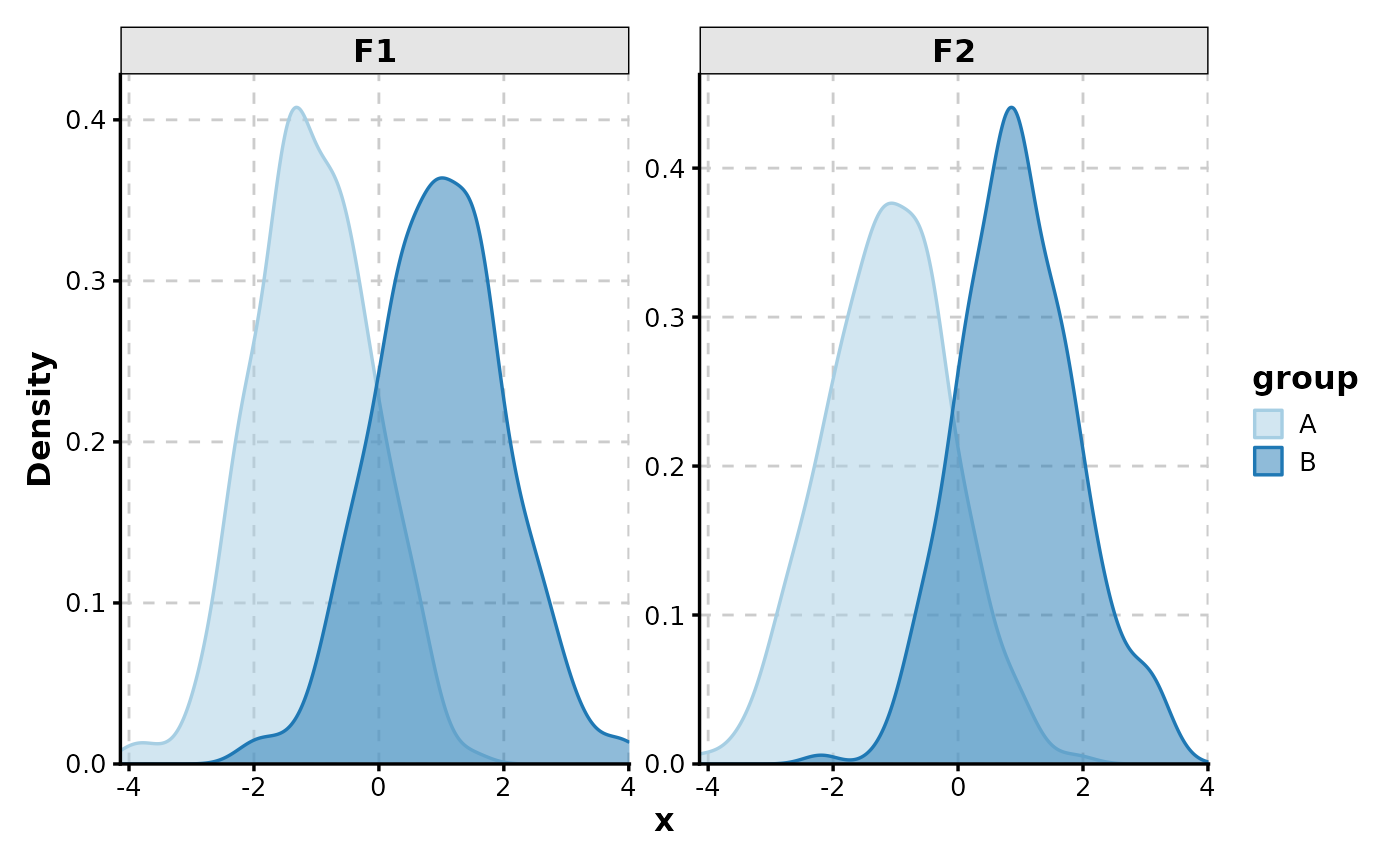

DensityPlot(data, x = "x", group_by = "group", facet_by = "facet")

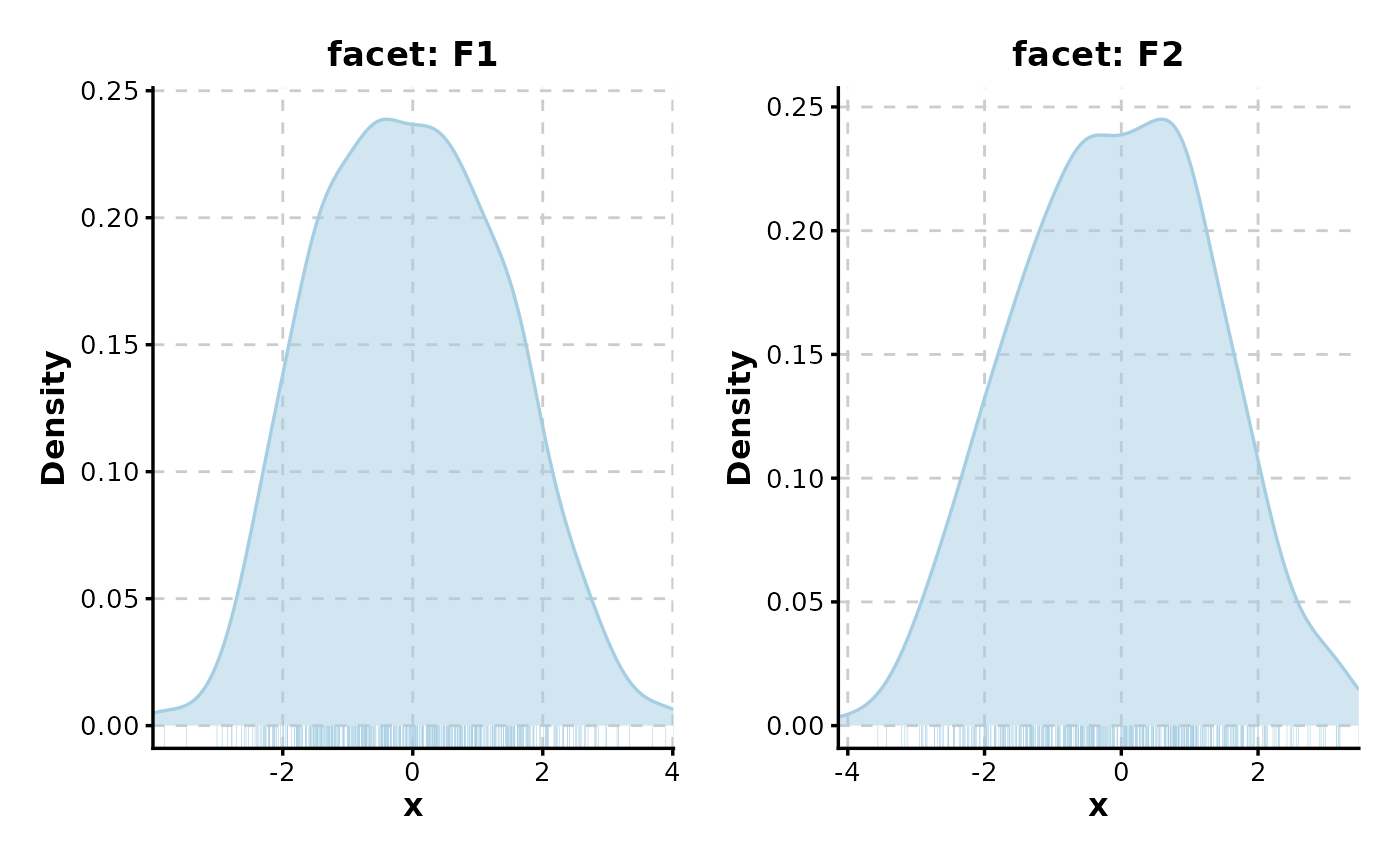

DensityPlot(data, x = "x", split_by = "facet", add_bars = TRUE)
